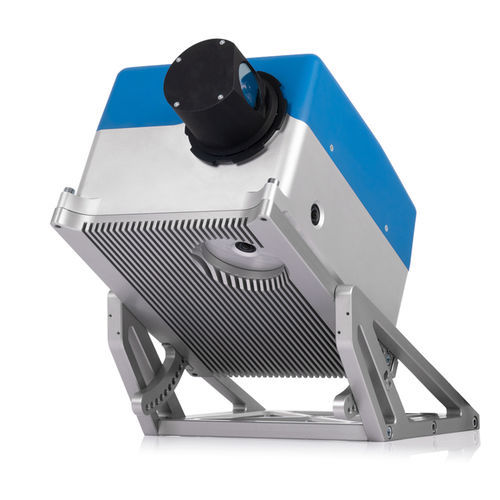

2D scanner Z+F PROFILER® 9020C

for mappinglaserpoint cloud

Overview
The Z+F PROFILER 9020C is a mobile 2D laser scanner with four integrated 5 MP cameras that enable capture of colored point clouds without external imaging equipment. Cameras cover the full 360° scanning area from approx. 0.4 m, providing high color fidelity and wide dynamic range to reduce post-processing of images.

Connectivity and installation
The PROFILER 9020C is designed for rapid, plug-and-play deployment: transmission and control require only a single USB 3 cable. Reduced cabling lowers installation time and the risk of connection errors. The scanner shares the P9020 mechanical design, allowing quick exchange within the series when needed.

Camera calibration and synchronization
All four cameras are factory-mounted, calibrated and synchronized with the scanner. This eliminates separate external camera calibration and ensures image pixels align precisely with measurement points. The compact assembly minimizes parallax and supports measurement accuracy in mixed lighting conditions.

Technical highlights

• 4 integrated cameras (5 MP each)
• Factory-calibrated, plug-and-play camera system
• 267 profiles/sec (rotation speed 267 Hz)
• Approx. 2 million points/pixels per second
• Measurement accuracy down to 0.2 mm (1–25 m)
• Maximum range up to 182 m
• 360° field of view

Performance and suitability
With up to 267 Hz rotation (max. 16,020 rpm) and ~2 million points/sec, the Z+F PROFILER 9020C is suitable for high-speed mobile mapping and survey tasks. Its range and accuracy support a wide range of mobile mapping scenarios while integrated cameras streamline generation of colored point clouds.

Specifications / technical data

• Model: Z+F PROFILER 9020C
• Integrated cameras: 4 × 5 MP
• Colored point cloud generation without external cameras
• Camera coverage: 360° field of view, from ~0.4 m distance
• Calibration: factory-mounted, calibrated and synchronized
• Interfaces/cabling: single USB 3 cable for data and control
• Profiles per second: 267 profiles/sec
• Points/pixels per second: approx. 2,000,000
• Rotation speed: 267 Hz (max. 16,020 rpm)
• Maximum range: up to 182 m
• Measurement accuracy: 0.2 mm (typ. 1–25 m)
• Field of view: 360°
• Design: compact, low parallax, exchangeable within P9020 series
