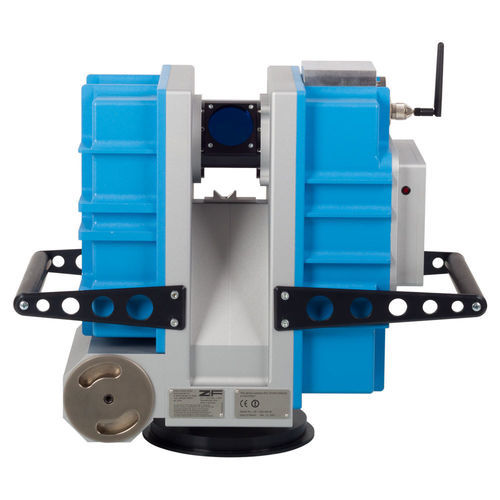

3D scanner Z+F IMAGER® 5006EX

laserpoint cloudfor the automotive industry

Overview
Based on the Z+F IMAGER® laser scanner series, the Z+F IMAGER® 5006EX is an explosion-proof 3D laser scanner certified for use in hazardous atmospheres. It is ATEX approved for Class I and Class II environments and is designed for surveying tasks in underground mining and industrial sites where explosive atmospheres may occur.

Key features

• Nominal range: 79 m — suitable for many hazardous-area scanning tasks
• Extended viewing area: 310° vertical × 360° horizontal — wide coverage with fewer scan positions
• 100% Stand‑Alone concept — no external equipment required in the field, reducing potential ignition sources
• ATEX certified for Class I and II (directive 94/9/EG)

Applications

• Industrial facilities
• Underground mining
• Oil & gas sites

Technical specifications
Laser system

• Laser safety class: 3R (ISO EN 60825-1)
• Beam divergence: 0.22 mrad
• Beam diameter: 3 mm circular @ 1 m
• Ambiguity interval: 79 m
• Minimum range: 0.4 m
• Range resolution: 0.1 mm
• Data acquisition rate: ≤ 508,000 pixel / s
• Linearity error up to 50 m: ≤ 1 mm
• Range noise: 0.7 mm rms

Deflection unit

• Vertical system: rotating mirror
• Horizontal system: rotating device
• Field of view vertical: 310°
• Field of view horizontal: 360°
• Vertical resolution: 0.0018°
• Horizontal resolution: 0.0018°
• Vertical accuracy: 0.007° rms
• Horizontal accuracy: 0.007° rms
• Scanning speed: ≤ 50 r/s (3,000 r/min) max.

General

• Tilt measurement resolution: 0.001°
• Accuracy (zero point): 0.002°
• Data storage: 60 GB internal HDD
• Integrated operation panel: keypad with 6 buttons, 4-line display
• Data & communication interfaces: Ethernet / W-LAN

Power supply

• Input voltage: 18 V DC (scanner)
• Power consumption: 65 W max.
• Battery life: approx. 1 h (replaceable battery pack)

Ambient conditions

• Operating (calibrated) temperature: 0 °C to +40 °C
• Storage temperature: -20 °C to +50 °C
• Illumination: all conditions
• Humidity: non-condensing
• Protection class: IP53
• Explosion protection: ATEX 94/9/EG, Class I and II
• Target reflectivity: operation without retro-reflectors
