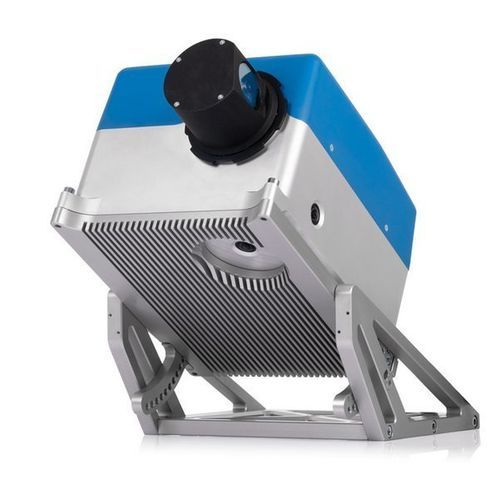

2D scanner Z+F PROFILER® 9025C

for tunnelinspectionfor mapping

Product overview
The Z+F PROFILER® 9025C is a mobile 2D laser scanner with integrated cameras designed for demanding mobile surveying and mapping tasks. It captures dense, georeferenceable profile data at high measurement rates and maintains stable measurement quality under varying operational conditions.

Integrated camera system
The unit integrates four 8‑megapixel cameras with wide dynamic range. Image data are processed onboard the scanner, eliminating the need for external computers and extra cabling. The fully calibrated camera system enables automated, precise color mapping of the point cloud for immediate, color-realistic 3D outputs ready for analysis.

Optional features
Marker Mode (optional): a red laser beam highlights defined angular ranges in the scan profile during acquisition, enabling fast visual identification of relevant structures and features.

Technical highlights

• Measurement rate: up to 267 profiles/sec
• Throughput: ~2.188 million pixels/sec
• Maximum usable uniqueness range: 182 m
• Field of view: 360°
• Cameras: 4 × 8 megapixels (integrated)
• Integrated reference plate
• Fully calibrated system for automated color mapping
• Laser safety: Class 1

Applications

• Mobile mapping for road, rail and tunnel surveying
• High-speed corridor inspection and asset documentation
• Industrial mobile surveying tasks requiring dense, colored point clouds

Key features for operators

• High profile rate for dense data capture at vehicle speeds
• Onboard image processing reduces setup complexity and cabling
• Automated color mapping delivers ready-to-use colored point clouds
• Robust mechanical design for consistent performance in changing environments

Technical specifications

• Model: Z+F PROFILER® 9025C
• Scanner type: Mobile 2D laser scanner with integrated camera system
• Profiles per second: up to 267 profiles/sec
• Pixels per second: ~2.188 million pixels/sec
• Maximum usable uniqueness range: 182 m
• Field of view: 360°
• Cameras: 4 × 8 megapixels (integrated)
• Onboard image processing: image data processed directly in scanner (no external PC required)
• Color mapping: fully calibrated camera system enabling automated coloring of point clouds
• Marker Mode: red laser beam marking of defined angle ranges (optional)
• Reference: integrated reference plate
• Measurement accuracy (comparable to 9020 series): 0.2 mm in the 1–25 m range (manufacturer stated)
• Laser safety: Class 1
