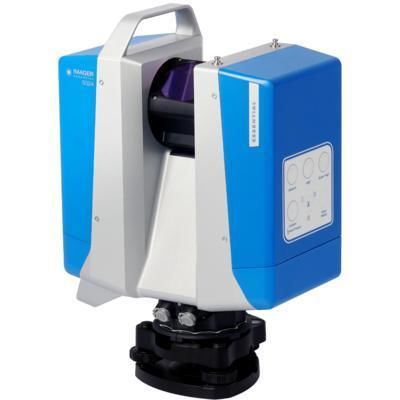

3D scanner Z+F IMAGER® 5024 Essential

for mappinglaserpoint cloud

Overview
The Z+F IMAGER® 5024 Essential is a 3D laser scanner engineered for efficient surveying work at close to mid ranges. It supports static scanning up to 80 m and provides flexible operation via on-device control and a configurable smartphone/tablet UI.

Data Quality
In its available modes and resolution levels the 5024 Essential delivers the same measurement quality as the higher-tier Z+F IMAGER® 5024 Supreme, while offering a simplified feature set for cost-effective deployments.

Upgrade Option
The device can be upgraded to Z+F IMAGER® 5024 Advanced or Supreme to enable additional resolution levels, quality modes and extended ranges as project requirements evolve.

Efficiency and Focus on Essentials
The Essential model emphasises essential settings and a reduced on-device display to minimise field configuration errors. Individual workflows can be managed through the configurable UI on a smartphone or tablet.

Further Technical Highlights

• Data rate: 1.1 MHz
• Scan time (high resolution): 91 s
• Range: up to 80 m
• Resolution levels: 4
• Quality modes: 1
• Interface: control panel (on-device)
• Storage: 128 GB

High-Quality Color Data (TopCam)
Color acquisition is available using the external Z+F TopCam (wide-angle camera), delivering color information faster than the i‑Cam alternative for efficient colorization of scans.

Flexibility and Mobile Integration
The IMAGER® 5024 Essential is fully compatible with Z+F FlexScan® 22 for mobile surveying. Mobile SLAM data can be integrated with static scans to improve overall survey accuracy and workflow efficiency.

Applications

• Industry
• Architecture & BIM
• Facility management
• Insurance
• Monuments / Heritage
• Virtual reality

Technical specifications

• Laser class: 1
• Beam diameter / divergence: ~3.5 mm @ 1 m / ~0.3 mrad (1/e2, half angle)
• Measurement range: 0.3 m … 80 m (ambiguity interval)
• Range resolution: 0.1 mm
• Data acquisition rate: max. 1.1 million pixels/s
• Scan time (high resolution): 91 s
• Linearity error: ≤ 1 mm + 10 ppm/m
• Range noise: 0.25 mm rms
• WLAN: 802.11 a/n/g dual band, up to 240 Mbit/s
• Data storage: 128 GB
• Control: on-device control panel and configurable UI via smartphone/tablet
• Deflection system: fully encapsulated rotating mirror with integrated HDR camera and LED spots
• Vertical field of view: 320°
• Horizontal field of view: 360°
• Angular resolution (vertical): 0.00026° (0.93 arcsec)
• Angular resolution (horizontal): 0.00018° (0.65 arcsec)
• Vertical accuracy: 0.004° (14.4 arcsec) rms
• Horizontal accuracy: 0.004° (14.4 arcsec) rms
• Rotation speed: max. 55 rps
