Series 72: Sigma Elastic rubber tread; hardness 70+/-3 Shore A; good resistance to wear and to tearing; aluminium and cast iron centre. Standard duty (NL), medium-heavy duty (P), extra-heavy duty (EP) and electro-welded (EE) castors. Diameter: 100-300 mm, Carrying capacity: 180-950 daN.
Series 73: Sigma Elastic rubber tread; hardness 70+/-3 Shore A; good resistance to wear and to tearing; polyamide 6 centre. Standard duty (NL), medium-heavy duty (P), stainless steel medium-heavy duty (PX) castors. Diameter: 100-200 mm, Carrying capacity: 150-450 daN.
Series 73AE: Non-marking blue elastic rubber wheels, hardness 70 Shore A; polyamide 6 centre. Standard duty brackets (NL) and medium-heavy duty brackets (P). Diameter: 100-200 mm, Carrying capacity: 150-350 daN.
|
|
The wheel diameter has significant influence on the performance of a castor.
Wheel-ø 14 mm up to ø 100 mm
|
|
Series 30: Grey rubber furniture wheels; zinc plated brackets with thread. This series is particularly suitable for office chairs and furniture pieces with light carrying capacity (20 daN)
Series 31: Beech wooden furniture wheels with thin polyurethane covering. Black painted and chromium plated brackets. Diameter: 50-125 mm; carrying capacity: 40 daN.
Series 33: Rubber ball furniture wheels with zinc-plated castors. Diameter: 30-50 mm, carrying capacity: 10-30 daN.
Series 34: Paired polyamide 6/polypropylene furniture wheels, polyamide brackets with steel fittings. Diameter: 35-50 mm, carrying capacity: 10-30 daN. This series is particularly suitable for office chairs and furniture pieces with light carrying capacity.
Series 35: Rubber tyred ball wheels with zinc-plated brackets. Diameter: 45-65 mm, carrying capacity: 20-40 daN.
Series 39: Methacrylate furniture wheels. Zinc-plated brackets. Diameter: 50-78 mm; carrying capacity: 20-40 daN.
|
|
The wheel diameter has significant influence on the performance of a castor.
Wheel-ø 80 mm up to ø 500 mm
|
|
TR polyurethane wheels with electrowelded castors.
These castors are suitable for use in heavy-duty conditions (high impact and speed). To increase the maximum load capacity and resistance to side-impact, a forged fixing plate has been developed with integrated pin and the fork sides have been shaped by drawing.
It is possibile to combine total or directional braking systems and the foot-guard.
|
|
|
Castors are available in a range of sizes, in the form of Swivel Castors, Swivel Castors with double brake (brake for wheel axis and swivelling axis) and F
|
|
Series 22: Non-marking grey rubber wheels, hardness 80 Shore A, polypropylene centre. Standard duty (NL) and stainless steel standard duty (NLX) castors. Diameter: 80-200 mm, Carrying capacity: 65-225 daN
Series 23: Non-marking grey rubber wheels, hardness 80 Shore A, centre made of two riveted galvanized pressed steel discs. Standard duty castors (NL). Diameter: 80-200 mm, Carrying capacity: 65-230 daN
Series 52: Standard rubber wheels, hardness 83 Shore A, polypropylene centre. Standard duty castors (NL). Diameter: 80-250 mm, Carrying capacity: 65-300 daN
Series 53: Standard rubber wheels, hardness 83 Shore A, centre made of two riveted galvanized pressed steel discs. Standard duty castors (NL). Diameter: 80-280 mm, Carrying capacity: 65-390 daN
Series 71: Grey non-marking thermoplastic rubber wheels, hardness +85 /- 4 Shore A, polypropylene centre. Standard duty castors (NL) and stainless steel standard duty (NLX) brakets. Diameter: 80-200 mm, Carrying capacity: 70-225 daN
|
|
|
From simple plastic castors for furniture to self levelling, locking and stainless steel options WDS have a wide range of castors. Our range of wheels encompass solid rubber and polyurethane options plus a plain cast iron option to accept your own tyre. Both these options are complimented by a range of light, medium and heavy duty Ball Transfer Units. All these options are available in our Machine Accessories Catalogue call + 44 (0)113 290 9852 for your copy or visit our website.
|
|
The main feature of these castors is the possibility to transform them from swivel castors into fixed castors, by engaging the brake and as such eliminating the offset. This not only increases the stability of the trolley, but also increases the stationary load capacity by approximately 30% with respect to the offset model. These castors are available in the following models:
- with top plate fitting systeme
- with unthreaded stem fitting systeme
- with threaded stem fitting systeme, which allows the mobile scaffoldin to be positioned horizontally, even in unlevel conditions.
Complies with EN 1004:2005
Available with double pedal.
|
|
Wheel description
Standard non-marking rubber tread; hardness 85 +/-3 Shore A. Centre made of two riveted galvanized pressed steel discs.
The version with roller bearings of these wheels is also available with an antistatic strip. To order the anti-static wheel, add the suffix "AS" to the wheel+castor assembling cod
Bush bearing bore or roller bearing bore
In the bush bearing bore, the hub contains a bush made of polyamide 6 with molybdenum disulphide to make it self-lubricating.
In the roller bearing bore, the bearing housing contains cylindrical roller bearings with polyamide 6 cage.
Axle
Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032.
Swivel top plate bracket NL with central lock
Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted. The hexagonal brake system locks at the same time the rotation of two wheels.
|
|
|

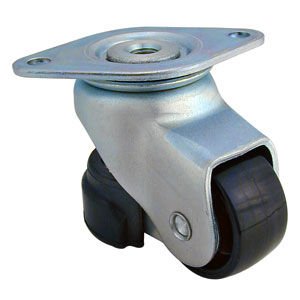

Adjustable height leveling casters allow the height of equipment to be adjusted on the caster in addition to the leveler. This is particularly useful in applications where one piece of equipment must dock to another. Standard models have 1.00+ in. (25+ mm) of adjustment and the levelers are sold separately. This casters is also used in many applications without the leveler.
|
|
Elastic wheels
LINE EKR BL EKK BL
Wheel body : made of polyamide 6 black with plain, roller, or ball bearing.
Tyre: Made of elastic solid rubber, blue, non removable vulcanized, low rolling resistance
|
|
Diameter: 30 to 100 mm
Charge Capacity: 10 - 70 kgs
Assemblies:
Fixed
Swivel
Bolt Hole
Swivel with Brake
Bolt hole with brake
Bolt hole fitting
Plate
Plate and brake
Stem Fitting
Stem Fitting and brake
Wheels:
PGI- Grey Rubber Tyred and Polypropylene Centred Wheel
BP- Grey Polypropylene Wheel
PGI- Grey Rubber Tyred and Polypropylene Centred Wheel
KP- Galet en Polypropylene
PPI- Red Polyurethane Tyred and Polypropylene Centred Wheel
|
|
Heat resistant wheels baker – compact
LINE PHG100HI PHB100HI PHK 100HI
Wheel : High quality phenolic wheels, combined with special fibers, trackless.
Available with plain bore, temp ball bearings and HT selflube bushes.
|
|
Diameter: 100 to 400 mm
Charge Capacity : 160 – 7,025 kgs
Assemblies :
Fixed
Swivel
Swivel with Brake
Wheels:
HU- Polyurethane Tyred and Cast Iron Centred Wheel
HC- Cast Iron Wheel
HG- Rubber Tyred and Cast Iron Centred Wheel
FT- Reinforced Nylon Wheel
TA- Cast Iron Wheel
DE- Elastic Rubber Tyred and Aluminium Centred Wheel
PO-Polyurethane Tyred and Nylon Centred Wheel
|
|
|
Leveling casters combine a dual wheel caster and a precision leveling component (sold separately) to create a practical and cost-effective integrated solution. These high quality stainless products are designed for heavy capital equipment applications in the semiconductor, pharmaceutical, and medical industries where both mobility and leveling are required.
|
|
UHG LOW PROFILE HEAVY DUTY WHEEL AND CASTER
(Wheel Diameter 50, 65, 75, 80, or 100 mm)
*Low Profile and Heavy Duty up to 816kg (1795 lbs) per caster.
Ideal for Manufacturing Equipment.
*Sealed ball bearing swivel assembly provides smooth and long-term service.
*Hexavalent chromium free. Using trivalent chromium for RoHS compliance.
*Choose wheel type from Phenolic, Reinforced Nylon, MC Nylon, or Electro-conductive MC Nylon.
*All wheels equipped with heavy duty ball bearing.
Please visit our website or PDF catalogue #152 for further information on this or other similar products.
|
|
Plastic wheels
LINE KLG KLR
Wheel : Made of high quality polyamide in light and medium model, with plain or roller bearing . The wheels are temperature resistant from 40°C up to +80°C.
|
|
Polyuethqne6zheels
LINE PKG PKR PKK
Wheel : wheel body made of polyamide 6 natural with plain, roller, or ball bearing. Coating made of high quality polyurenthane, non removable attached to wheel. Abrasion resistant, low rolling resistance, quiet.
|
|
Solid rubber wheels
LINE VBR
Wheel : Wheel body madle of sheet steel, zinced, with roller bearing, Equipped with standard solid rubber types
|
|
|
Industrial swivel casters are specifically made for applications where a low overall height and a high load capacity are desired. All of our casters feature dual wheels and a tempered stainless steel construction that exhibits excellent strength, light weight, corrosion resistance, and passive shock absorption.
|
|
Japanese manufacturer, Sugatsune, has a wide range of casters for industrial or furniture use.
Please visit our web site or view the PDF catalog files here.
sugatsune.co.jp (Sugatsune Japan)
sugatsune.com (Sugatsune America)
sugatsune.net (Sugatsune America-Industrial)
|
|
Apparatus and furniture wheels and castors
Apparatus-platic wheels
LINE AKG
Wheel : Made of high quality plastic, black, plain bearing
|
|
Diameter: 160 to 200 mm
Charge Capacity : 215 - 700 kgs
Wheel + Assembly Brake
Wheels:
TN-Reinforced Nylon Wheel
HU- Polyurethane Tyred and Cast Iron Centred Wheel
HG- Rubber Tyred and Cast Iron Centred Wheel
PS- Rubber Tyred and Polypropylene Centred Wheel
BS- Rubber Tyred and Metallic Centred Wheel
|
|
Pneumatic wheels
LINE UBR UBK
Wheel : wheel body made of sheet steel, zinced or painted, with ball bearing or groove ball bearing. Equipped with standard pneumatic wheels in 2 PR
Thread 1 : Groove tread
Thread 2 : lug tread
|
|
|
|
