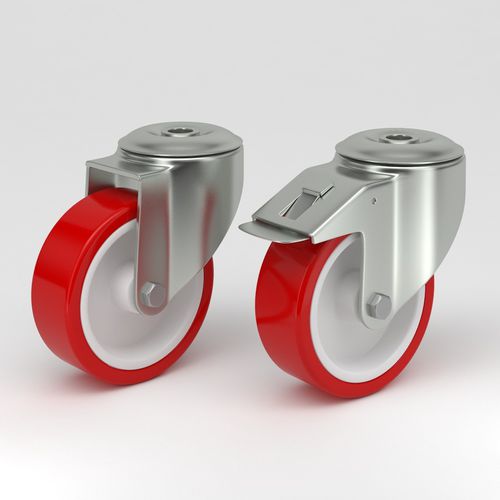

Swivel caster S010TU seriesbase platedoublepolyamide
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- double, steel, polyurethane, polyamide, stainless steel, plain bearing, with roller bearing
- Load capacity
250 kg
(551 lb)- Wheel diameter
80 mm, 100 mm, 125 mm
(3.15 in, 3.937 in, 4.921 in)- Tread width
32 mm, 36 mm
(1.26 in, 1.42 in)
Description
Fork made of stainless steel, double ball bearing swivel head, wheel axle with nut, bolt hole, wheel centre made of polyamide and tread made of polyurethane, stainless plain bearing
Also supplied with roller bearing (stainless) or precision ball bearing (stainless), sealed.
Hygienic swivel castor with total lock and wheel centre made of polyamide and tread made of polyurethane
Swivel castor with total lock, fork bracket made of 3mm EN 1.4301 / AISI 304 stainless steel plate, double ball bearing swivel head, wheel axle with plain bearing, center hole mount.
Hygienic swivel castor with total lock and wheel centre made of polyamide and tread made of polyurethane
Hygienic swivel castor with stainless steel bracket single bolt hole
Swivel castor, fork bracket made of 3mm EN 1.4301 / AISI 304 stainless steel plate, double ball bearing swivel head, wheel axle with plain bearing, center hole mount.
Hygienic castor technical data
Hardness of tread Shore D 75
Temperature – 40 / + 80 °C
Standard EN 12532
Single bolt hole 13 mm
Material stainless steel EN 1.4301 / AISI 304.
