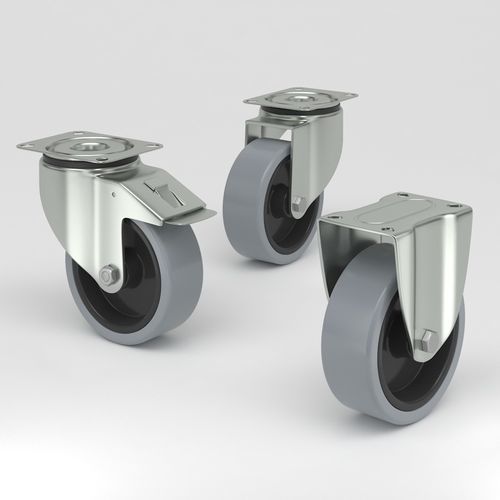

Swivel caster Q-B13- 3G series

fixedbase platefor medical equipment

Overview
Fork made of stainless steel, double ball bearing swivel head, wheel axle with nut, wheel centre made of polyamide and tread made of grey non-marking elastic-tire. Stainless plain bearing, plate mount. Also supplied with stainless roller bearing or sealed stainless precision ball bearing as options. Corrosion-resistant stainless steel housing and smooth surfaces for easy cleaning.

Key features

• Grey non-marking elastic tire: prevents floor damage and leaves no marks.
• Wheel centre made of polyamide for durability and hygiene.
• Fork and brackets in stainless steel EN 1.4301 / AISI 304.
• Swivel head with double ball bearings for smooth rotation.
• Wheel axle with plain bearing; optional roller bearing or precision ball bearing (stainless, sealed).
• Available as swivel castor (with total lock), swivel with stainless steel plate bracket, and fixed castor.
• Plate mount design with standardized hole centres and plate sizes.

Benefits for hygienic environments
The design minimises contamination risk and eases cleaning: smooth stainless components resist corrosion in wet/humid conditions, elastic tyre absorbs shock and reduces noise, and the overall geometry facilitates quick and thorough cleaning without crevices that trap dirt or bacteria.

Enhanced mobility and safety
Excellent manoeuvrability with superior traction from elastic tread. Swivel and locking options (including total lock) increase stability and workflow efficiency in production and clean-room environments such as food processing, pharmaceuticals and healthcare.

Options & variants

• Swivel castor with total lock (plate mount).
• Swivel castor with stainless steel plate bracket.
• Fixed castor (plate mount).
• Bearings: plain bearing (standard), stainless roller bearing, or sealed stainless precision ball bearing.

Technical tables (values per model)
Swivel castor with total lock — GN080-Q-B13- 3G / GN100-Q-B13- 3G / GN125-Q-B13- 3G / GN160-Q-B13- 3G / GN200-Q-B13- 3G
Technical Date / ︒C / mm / kg
Wheel diameter / 80 mm / 100 mm / 125 mm / 160 mm / 200 mm
Width of Tread / 35 mm / 36 mm / 36 mm / 40 mm / 40 mm
Hardness of tread / Shore A 65 / Shore A 65 / Shore A 65 / Shore A 65 / Shore A 65
Size of Plate / 105 x 85 mm / 105 x 85 mm / 105 x 85 mm / 135 x 110 mm / 135 x 110 mm
Plate hole centres / 82×62 78×58 mm / 82×62 78×58 mm / 82×62 78×58 mm / 110×85 100×75 mm / 110×85 100×75 mm
Plate hole / 9 mm / 9 mm / 9 mm / 11 mm / 11 mm
Offset / 34 mm / 34 mm / 32 mm / 53 mm / 53 mm
Swivel Interference / 222 mm / 236 mm / 248 mm / 334 mm / 370 mm
Overall height / 105 mm / 128 mm / 156 mm / 195 mm / 235 mm
Temperature / -30 / +80 ︒C (all models)
Standard / EN12532 (all models)
Weight / 0.607 kg / 0.739 kg / 0.8898 kg / 2.2512 kg / 2.5082 kg
Load capacity / 200 kg / 150 kg / 200 kg / 300 kg / 330 kg
Load capacity (static) / 400 kg / 300 kg / 400 kg / 600 kg / 660 kg

Industrial swivel castor with stainless steel plate bracket — GN080-B13- 3G / GN100-B13- 3G / GN125-B13- 3G / GN160-B13- 3G / GN200-B13- 3G
Technical Date / ︒C / mm / kg
Wheel diameter / 80 mm / 100 mm / 125 mm / 160 mm / 200 mm
Width of Tread / 35 mm / 36 mm / 36 mm / 40 mm / 40 mm
Hardness of tread / Shore A 65 (all models)
Size of Plate / 105 x 85 mm / 105 x 85 mm / 105 x 85 mm / 135 x 110 mm / 135 x 110 mm
Plate hole centres / 82×62 78×58 mm / 82×62 78×58 mm / 82×62 78×58 mm / 110×85 100×75 mm / 110×85 100×75 mm
Plate hole / 9 mm / 9 mm / 9 mm / 11 mm / 11 mm
Offset / 34 mm / 34 mm / 32 mm / 53 mm / 53 mm
Swivel Radius / 74 mm / 84 mm / 95 mm / 133 mm / 153 mm
Swivel Interference / 148 mm / 168 mm / 190 mm / 266 mm / 306 mm
Overall height / 105 mm / 128 mm / 156 mm / 195 mm / 235 mm
Temperature / -30 / +80 ︒C (all models)
Standard / EN12532 (all models)
Weight / 0.587 kg / 0.699 kg / 0.7878 kg / 2.1432 kg / 2.3162 kg
Load capacity / 200 kg / 150 kg / 200 kg / 300 kg / 330 kg
Load capacity (static) / 400 kg / 300 kg / 400 kg / 600 kg / 660 kg

Industrial fixed castor (plate) — GN080-FIX- 3G / GN100-FIX- 3G / GN125-FIX- 3G / GN160-FIX- 3G / GN200-FIX- 3G
Technical Date / ︒C / mm / kg
Wheel diameter / 80 mm / 100 mm / 125 mm / 160 mm / 200 mm
Width of Tread / 35 mm / 36 mm / 36 mm / 40 mm / 40 mm
Hardness of tread / Shore A 65 (all models)
Size of Plate / 103 x 85 mm / 103 x 85 mm / 103 x 85 mm / 137 x 111 mm / 137 x 111 mm
Plate hole centres / 82×62 78×58 mm / 82×62 78×58 mm / 82×62 78×58 mm / 110×85 100×75 mm / 110×85 100×75 mm
Plate hole / 9 mm / 9 mm / 9 mm / 11 mm / 11 mm
Overall height / 105 mm / 128 mm / 156 mm / 195 mm / 235 mm
Temperature / -30 / +80 ︒C (all models)
Standard / EN12532 (all models)
Weight / 0.447 kg / 0.500 kg / 0.7638 kg / 1.7362 kg / 1.9462 kg
Load capacity / 200 kg / 150 kg / 200 kg / 300 kg / 330 kg
Load capacity (static) / 400 kg / 300 kg / 400 kg / 600 kg / 660 kg

Caractéristiques / spécifications techniques

• Material: stainless steel EN 1.4301 / AISI 304 (forks, brackets, plate).
• Wheel centre: polyamide.
• Tread: grey non-marking elastic-tire, hardness Shore A 65.
• Temperature range: -30 °C to +80 °C.
• Standards: EN 12532.
• Bearing options: plain bearing (standard), stainless roller bearing, sealed stainless precision ball bearing.
• Mounting: plate mount; plate sizes and hole centres vary by wheel diameter (see tables above).
• Wheel diameters available: 80 mm, 100 mm, 125 mm, 160 mm, 200 mm.
• Load capacity (per wheel) typical range: from 150 kg to 330 kg depending on model; static capacities up to 660 kg depending on model.
• Available functions: swivel, swivel with total lock, fixed.
