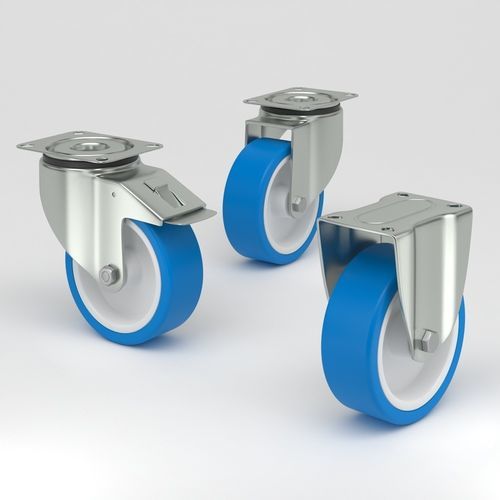

Swivel caster Q-B13- 3B seriesfixedbase platefor trolleys
Add to favorites
Compare this product
Characteristics
- Type
- swivel, fixed
- Mount
- base plate
- Other characteristics
- for trolleys, for materials handling, for medical equipment, for transport
- Load capacity
150 kg, 200 kg, 400 kg
(331 lb, 441 lb, 882 lb)- Wheel diameter
80 mm, 100 mm, 125 mm, 160 mm, 200 mm
(3.15 in, 3.937 in, 4.921 in, 6.299 in, 7.874 in)- Tread width
30 mm, 36 mm, 37 mm, 45 mm, 50 mm
(1.18 in, 1.42 in, 1.46 in, 1.77 in, 1.97 in)
Description
Overview
The TU-series industrial castor in hygienic design with a blue polyurethane tread is engineered for use in environments requiring strict cleanliness (food processing, pharmaceutical, cleanrooms). Stainless steel fork and components, a polyamide wheel centre and sealed bearing options reduce contamination risk while providing reliable mobility and floor protection.
Construction and materials
Key features
Benefits of blue polyurethane tread
Applications
Models and technical data (examples)
Characteristics / technical specifications
The TU-series industrial castor in hygienic design with a blue polyurethane tread is engineered for use in environments requiring strict cleanliness (food processing, pharmaceutical, cleanrooms). Stainless steel fork and components, a polyamide wheel centre and sealed bearing options reduce contamination risk while providing reliable mobility and floor protection.
Construction and materials
- Fork, brackets and plate: stainless steel EN 1.4301 / AISI 304
- Wheel centre: polyamide
- Tread: blue polyurethane, non-marking, Shore D 48
- Swivel head: double ball bearing (where applicable)
- Bearings: plain stainless, stainless roller bearing or precision sealed stainless ball bearings (options)
- Mounting: plate mount or stainless steel plate bracket options
Key features
- Hygienic design with smooth surfaces and stainless components to limit dirt and bacterial accumulation
- Sealed bearing units to maintain cleanliness and ease of washing
- Blue polyurethane tread: chemical resistant and non-marking for sanitary areas
- Low rolling resistance and good floor protection
- Shock-absorbing properties reduce noise and vibration
- Suitable for wet and aggressive cleaning regimes
Benefits of blue polyurethane tread
- High load capacity with low rolling resistance
- Excellent protection of floor surfaces
- Resistant to moisture, oils and cleaning agents
- Durable performance and long service life in sanitary environments
Applications
- Food processing equipment and trolleys
- Pharmaceutical machinery and laboratory equipment
- Laboratory carts and cleanroom applications
- Medical devices and hygienic production lines
Models and technical data (examples)
- Swivel castor with total lock (polyamide centre, polyurethane tread): TU080-Q-B13-3B | TU100-Q-B13-3B | TU125-Q-B13-3B | TU160-Q-B13-3B | TU200-Q-B13-3B
- Swivel castor with stainless steel plate bracket: TU080-B13-3B | TU100-B13-3B | TU125-B13-3B | TU160-B13-3B | TU200-B13-3B
- Fixed castor (polyamide centre, polyurethane tread): TU080-FIX-3B | TU100-FIX-3B | TU125-FIX-3B | TU160-FIX-3B | TU200-FIX-3B
- Wheel diameters: 80 / 100 / 125 / 160 / 200 mm
- Tread width: 30 / 36 / 37 / 45 / 50 mm
- Tread hardness: Shore D 48
- Plate sizes: 103 x 85 mm, 105 x 85 mm, 135 x 110 mm (depending on model)
- Plate hole diameters: 9 mm (smaller sizes) and 11 mm (larger sizes)
- Temperature range: -20 °C to +70 °C
- Standard: EN 12532
- Typical dynamic load capacity: 150–400 kg (model dependent); static capacity up to 800 kg
Characteristics / technical specifications
- Materials: stainless steel EN 1.4301 / AISI 304 (fork, brackets, plate); polyamide wheel centre; blue polyurethane tread
- Available wheel diameters: 80, 100, 125, 160, 200 mm
- Bearings: plain stainless, stainless roller bearing or precision sealed stainless ball bearings
- Application temperature: -20 °C to +70 °C
- Compliance: EN 12532
