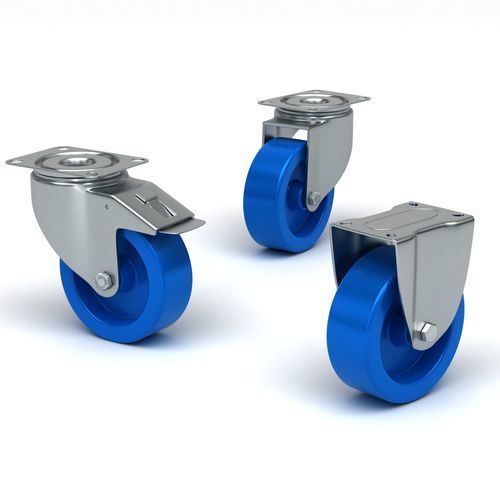

Swivel caster Q-B13- 3B seriesfixedbase platefor medical equipment
Add to favorites
Compare this product
Characteristics
- Type
- swivel, fixed
- Mount
- base plate
- Other characteristics
- with brake, with ball bearing, non-marking, industrial, handling, for materials handling, for medical equipment, for transport, polyamide, with roller bearing, stainless steel, plain bearing
- Load capacity
200 kg, 400 kg
(441 lb, 882 lb)- Wheel diameter
80 mm, 100 mm, 125 mm, 150 mm, 200 mm
(3.15 in, 3.937 in, 4.921 in, 5.906 in, 7.874 in)- Tread width
32 mm, 36 mm, 40 mm
(1.26 in, 1.42 in, 1.57 in)
Description
Product overview
Fork made of stainless steel EN 1.4301 / AISI 304, double ball-bearing swivel head, wheel axle with nut or plain bearing, blue polyamide wheel centre, stainless plain or sealed precision bearings, plate mount. Swivel and fixed variants available, including swivel versions with total lock and different bracket/plate mountings.
Key product variants
Benefits
Technical data – Swivel castor with total lock (models NY080-Q-B13-3B, NY100-Q-B13-3B, NY125-Q-B13-3B, NY160-Q-B13-3B, NY200-Q-B13-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 36 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset: 34 mm | 34 mm | 32 mm | 53 mm | 53 mm
Swivel interference: 222 mm | 236 mm | 248 mm | 334 mm | 370 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.719 kg | 0.701 kg | 0.8098 kg | 1.9488 kg | 2.3608 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Technical data – Swivel castor with stainless steel plate bracket (models NY080-B13-3B, NY100-B13-3B, NY125-B13-3B, NY160-B13-3B, NY200-B13-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 36 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset / Swivel radius / Swivel interference (selected values): Offset 34/34/32/53/53 mm; Swivel radius 74/84/95/128/153 mm; Swivel interference 148 / 168 / 190 / 256 / 306 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.589 kg | 0.661 kg | 0.7078 kg | 1.8408 kg | 2.1688 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Technical data – Industrial fixed castor (models NY080-FIX-3B, NY100-FIX-3B, NY125-FIX-3B, NY160-FIX-3B, NY200-FIX-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 37 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 103 x 85 mm | 103 x 85 mm | 103 x 85 mm | 137 x 111 mm | 137 x 111 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.3788 kg | 0.500 kg | 0.6838 kg | 1.4338 kg | 1.7988 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Applications
Designed for hygienic industries including food processing, pharmaceutical facilities, medical environments and cleanrooms where easy cleaning, corrosion resistance and non-marking wheels are essential.
Technical specifications
Fork made of stainless steel EN 1.4301 / AISI 304, double ball-bearing swivel head, wheel axle with nut or plain bearing, blue polyamide wheel centre, stainless plain or sealed precision bearings, plate mount. Swivel and fixed variants available, including swivel versions with total lock and different bracket/plate mountings.
Key product variants
- Industrial swivel castor with total lock and blue polyamide wheel centre (plate mount)
- Industrial swivel castor with stainless steel plate bracket
- Industrial fixed castor with blue polyamide wheel centre
Benefits
- Corrosion-resistant materials: stainless steel components for durability in wet and aggressive environments
- Non-marking wheels: blue polyamide wheels that avoid floor marking
- High load capacity: options for 200 kg and 400 kg dynamic loads depending on size
- Easy cleaning: hygienic design for wash-down environments and reduced bacterial harborage
- Hygiene compliance: designed for applications meeting EHEDG and FDA recommendations
Technical data – Swivel castor with total lock (models NY080-Q-B13-3B, NY100-Q-B13-3B, NY125-Q-B13-3B, NY160-Q-B13-3B, NY200-Q-B13-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 36 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset: 34 mm | 34 mm | 32 mm | 53 mm | 53 mm
Swivel interference: 222 mm | 236 mm | 248 mm | 334 mm | 370 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.719 kg | 0.701 kg | 0.8098 kg | 1.9488 kg | 2.3608 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Technical data – Swivel castor with stainless steel plate bracket (models NY080-B13-3B, NY100-B13-3B, NY125-B13-3B, NY160-B13-3B, NY200-B13-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 36 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset / Swivel radius / Swivel interference (selected values): Offset 34/34/32/53/53 mm; Swivel radius 74/84/95/128/153 mm; Swivel interference 148 / 168 / 190 / 256 / 306 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.589 kg | 0.661 kg | 0.7078 kg | 1.8408 kg | 2.1688 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Technical data – Industrial fixed castor (models NY080-FIX-3B, NY100-FIX-3B, NY125-FIX-3B, NY160-FIX-3B, NY200-FIX-3B)
Wheel diameter: 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of tread: 32 mm | 36 mm | 37 mm | 40 mm | 50 mm
Hardness of tread: Shore D 75 (all sizes)
Size of plate: 103 x 85 mm | 103 x 85 mm | 103 x 85 mm | 137 x 111 mm | 137 x 111 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Overall height: 105 mm | 128 mm | 156 mm | 190 mm | 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN 12532 (all sizes)
Weight: 0.3788 kg | 0.500 kg | 0.6838 kg | 1.4338 kg | 1.7988 kg
Load capacity (dynamic): 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static): 400 kg | 400 kg | 400 kg | 800 kg | 800 kg
Applications
Designed for hygienic industries including food processing, pharmaceutical facilities, medical environments and cleanrooms where easy cleaning, corrosion resistance and non-marking wheels are essential.
Technical specifications
- Wheel centre material: blue polyamide (non-porous, chemical resistant)
- Tread hardness: Shore D 75
- Temperature range: -40 °C to +80 °C
- Main construction material: stainless steel EN 1.4301 / AISI 304
- Standards: EN 12532
- Bearing options: stainless roller bearing or sealed precision stainless ball bearing
- Mounting: plate mount and stainless steel plate bracket variants available
- Load capacity (dynamic): typically 200 kg up to 400 kg per castor depending on size; static capacity up to 800 kg for larger sizes
- Available forms: swivel with total lock, swivel with plate bracket, fixed castor
