Swivel caster Q-RND-3G series

for medical equipmenthandlingelastic

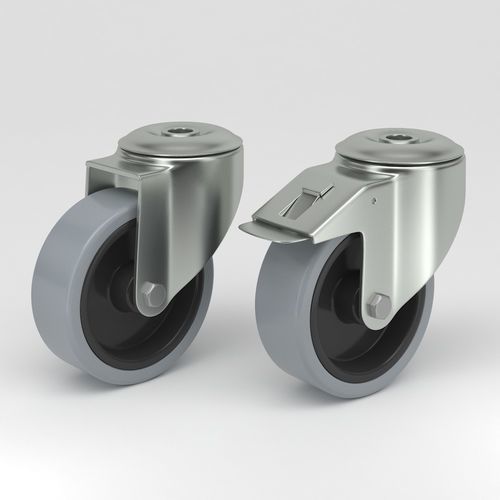

Swivel Castor GN...-RND-3G in Hygienic Design with Grey Non-Marking Elastic Tire
Swivel castors in hygienic design with grey non-marking elastic tires are engineered for applications where hygiene, floor protection and manoeuvrability are essential (food processing, pharmaceuticals, biotechnology, healthcare). Smooth surfaces, stainless-steel fork/bracket and sealed components minimise contamination risks and support compliance with EHEDG and 3A guidelines.

Key features

• Fork/bracket in stainless steel EN 1.4301 / AISI 304 (3 mm where specified)
• Double ball bearing swivel head
• Wheel centre made of polyamide
• Grey non-marking elastic tread, hardness Shore A 65
• Wheel axle with nut/bolt hole or plain bearing depending on version
• Bearing options: sealed stainless precision ball bearing or stainless roller bearing
• Sealed bearing system for low maintenance; designed for frequent washdowns

Hygienic swivel castor with total lock (GN...-Q-RND-3G)
Swivel castor with total lock, fork/bracket made of 3 mm EN 1.4301 / AISI 304 stainless steel plate, double ball bearing swivel head, wheel axle with plain bearing, centre hole mount. Designed for washdown exposure while protecting floors (non-marking tread).

Table - Swivel castor with total lock (GN...-Q-RND-3G)
| GN080-Q-RND-3G | GN100-Q-RND-3G | GN125-Q-RND-3G | GN160-Q-RND-3G | GN200-Q-RND-3G
Technical Data | C / mm / kg | C / mm / kg | C / mm / kg | C / mm / kg | C / mm / kg
Wheel diameter | 80 mm | 100 mm | 125 mm | 160 mm | 200 mm
Width of tread | 35 mm | 36 mm | 36 mm | 40 mm | 40 mm
Hardness of tread | Shore A 65 | Shore A 65 | Shore A 65 | Shore A 65 | Shore A 65
Centre hole | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm
Offset | 38 mm | 38 mm | 41 mm | 53 mm | 53 mm
Swivel interference | 222 mm | 238 mm | 268 mm | 334 mm | 370 mm
Overall height | 103 mm | 126 mm | 154 mm | 195 mm | 235 mm
Temperature | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C
Standard | EN12532 | EN12532 | EN12532 | EN12532 | EN12532
Weight | 0.785 kg | 0.7629 kg | 0.9458 kg | 1.7362 kg | 1.9462 kg
Load capacity | 200 kg | 150 kg | 200 kg | 300 kg | 330 kg
Static capacity | 400 kg | 300 kg | 400 kg | 600 kg | 660 kg

Hygienic swivel castor with stainless steel bracket single bolt hole (GN...-RND-3G)
Swivel castor with stainless steel bracket, double ball bearing swivel head, wheel axle with plain bearing, single bolt hole (13 mm) mounting for applications requiring single-bolt attachment.

Table - Swivel castor with single bolt hole (GN...-RND-3G)
| GN080-RND-3G | GN100-RND-3G | GN125-RND-3G | GN160-RND-3G | GN200-RND-3G
Technical Data | C / mm / kg | C / mm / kg | C / mm / kg | C / mm / kg | C / mm / kg
Wheel diameter | 80 mm | 100 mm | 125 mm | 160 mm | 200 mm
Width of tread | 35 mm | 36 mm | 36 mm | 40 mm | 40 mm
Hardness of tread | Shore A 65 | Shore A 65 | Shore A 65 | Shore A 65 | Shore A 65
Centre hole | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm
Offset | 38 mm | 38 mm | 41 mm | 53 mm | 53 mm
Swivel radius | 78 mm | 88 mm | 103.5 mm | 133 mm | 153 mm
Swivel interference | 156 mm | 176 mm | 207 mm | 266 mm | 306 mm
Overall height | 103 mm | 126 mm | 154 mm | 195 mm | 235 mm
Temperature | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C | -30 / +80 °C
Standard | EN12532 | EN12532 | EN12532 | EN12532 | EN12532
Weight | 0.725 kg | 0.6949 kg | 0.8398 kg | 1.7362 kg | 1.9462 kg
Load capacity | 200 kg | 150 kg | 200 kg | 300 kg | 330 kg
Static capacity | 400 kg | 300 kg | 400 kg | 600 kg | 660 kg

Benefits & Applications

• Non-marking elastic tyres protect sensitive floors and reduce noise
• Low rolling resistance with high load-bearing capacity for smooth movement of carts and equipment
• Corrosion-resistant stainless-steel construction withstands aggressive cleaning and washdown procedures
• Sealed bearing options reduce maintenance and downtime
• Ideal for food production lines, pharmaceutical labs, cleanrooms and other hygienic environments

Technical specifications

• Product family: GN...-RND-3G / GN...-Q-RND-3G
• Fork/bracket material: Stainless steel EN 1.4301 / AISI 304 (3 mm for some versions)
• Wheel centre: Polyamide
• Tread: Grey non-marking elastic tire, hardness Shore A 65
• Available wheel diameters: 80, 100, 125, 160, 200 mm
• Centre / bolt hole: 13 mm (where applicable)
• Offset by diameter: 38 mm (80/100), 41 mm (125), 53 mm (160/200)
• Operating temperature: -30 °C to +80 °C
• Standards: EN12532
• Bearing options: plain stainless bearing, stainless roller bearing, sealed stainless precision ball bearing
• Weights and dynamic/static capacities: see tables per model
