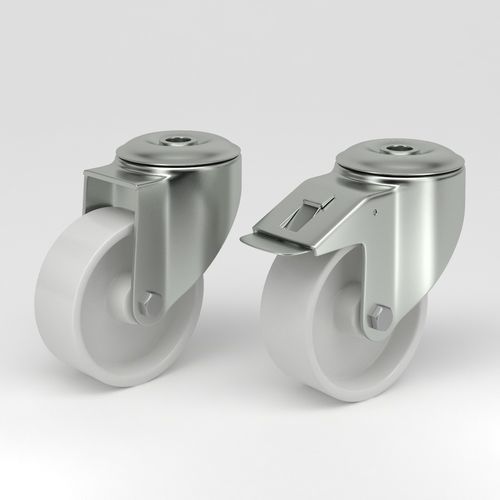

Swivel caster Q-RND-3W series

for medical equipmentnon-markinghigh load capacity

Overview
Swivel castors in hygienic design with white polyamide wheels are engineered for hygiene-sensitive industries such as food processing, pharmaceuticals and healthcare. They provide smooth mobility, easy washdown and corrosion resistance for environments that require frequent cleaning and regulatory compliance.

Construction and materials
Fork/bracket in stainless steel EN 1.4301 / AISI 304 (3 mm where specified). Swivel head with double ball bearing; wheel axle with nut; wheel centre made of white polyamide (non-porous). Standard bearing: plain bearing; available options: stainless roller bearing or sealed precision stainless ball bearing.

Hygienic design for maximum cleanability
Sealed stainless steel housing and smooth, flush surfaces minimise dirt traps and bacterial growth, enabling fast washdown and disinfection. The white polyamide tread resists moisture, chemicals and high-pressure cleaning and is non-marking for sensitive floors.

Durability and performance
The polyamide wheel delivers high dynamic and static load capacity, good impact resistance and long service life in wet or chemically exposed environments. Suitable for cleanrooms, production lines and equipment in hygiene-critical applications.

Key benefits

• Smooth, sealed surfaces for rapid cleaning and disinfection.
• High load capacity and impact resistance for industrial use.
• Non-marking white polyamide tread to prevent floor damage.
• Stainless steel components for corrosion resistance.
• Compliance where indicated with EHEDG and FDA requirements for hygiene-critical applications.

Hygienic swivel castor with total lock (fork bracket 3mm EN 1.4301 / AISI 304, centre-hole mount)
Models: NY080-Q-RND-3W, NY100-Q-RND-3W, NY125-Q-RND-3W, NY160-Q-RND-3W, NY200-Q-RND-3W
Wheel diameter:
NY080-Q-RND-3W: 80 mm
NY100-Q-RND-3W: 100 mm
NY125-Q-RND-3W: 125 mm
NY160-Q-RND-3W: 150 mm
NY200-Q-RND-3W: 200 mm
Width of tread:
80 mm model: 32 mm; 100 mm: 36 mm; 125 mm: 37 mm; 150 mm: 40 mm; 200 mm: 50 mm
Hardness of tread: Shore D 75 (all sizes)
Centre hole: 13 mm (all sizes)
Offset:
80 mm: 38 mm; 100 mm: 38 mm; 125 mm: 41 mm; 150 mm: 53 mm; 200 mm: 53 mm
Swivel interference:
80 mm: 223 mm; 100 mm: 238 mm; 125 mm: 268 mm; 150 mm: 334 mm; 200 mm: 370 mm
Overall height:
80 mm: 103 mm; 100 mm: 126 mm; 125 mm: 154 mm; 150 mm: 190 mm; 200 mm: 235 mm
Temperature range: -40 / +80 °C (all sizes)
Standard: EN12532 (all sizes)
Weight:
80 mm: 0.72 kg; 100 mm: 0.836 kg; 125 mm: 0.8658 kg; 150 mm: 1.4338 kg; 200 mm: 1.7988 kg
Load capacity (dynamic):
80 / 100 / 125 mm: 200 kg each; 150 / 200 mm: 400 kg each
Load capacity (static):
80 / 100 / 125 mm: 400 kg each; 150 / 200 mm: 800 kg each

Hygienic swivel castor with stainless steel bracket single bolt hole (fork bracket 3mm EN 1.4301 / AISI 304, centre-hole mount)
Models: NY080-RND-3W, NY100-RND-3W, NY125-RND-3W, NY160-RND-3W, NY200-RND-3W
Wheel diameter:
NY080-RND-3W: 80 mm
NY100-RND-3W: 100 mm
NY125-RND-3W: 125 mm
NY160-RND-3W: 150 mm
NY200-RND-3W: 200 mm
Width of tread:
80 mm: 32 mm; 100 mm: 36 mm; 125 mm: 37 mm; 150 mm: 40 mm; 200 mm: 50 mm
Hardness of tread: Shore D 75 (all sizes)
Centre hole: 13 mm (all sizes)
Offset:
80 mm: 38 mm; 100 mm: 38 mm; 125 mm: 41 mm; 150 mm: 53 mm; 200 mm: 53 mm
Swivel radius (selected):
80 mm: 74 mm; 100 mm: 88 mm; 125 mm: 103.5 mm; 150 mm: 334 mm; 200 mm: 370 mm
Swivel interference:
80 mm: 148 mm; 100 mm: 176 mm; 125 mm: 207 mm; 150 mm: 190 mm; 200 mm: 235 mm
Overall height:
80 mm: 103 mm; 100 mm: 126 mm; 125 mm: 154 mm; 150 mm: 190 mm; 200 mm: 235 mm
Temperature range: -40 / +80 °C (most sizes; one 125 mm variant shows -30 / +80 °C)
Standard: EN12532 (all sizes)
Weight:
80 mm: 0.615 kg; 100 mm: 0.696 kg; 125 mm: 0.7598 kg; 150 mm: 1.4338 kg; 200 mm: 1.7988 kg
Load capacity (dynamic):
80 / 100 / 125 mm: 200 kg each; 150 / 200 mm: 400 kg each
Load capacity (static):
80 / 100 / 125 mm: 400 kg each; 150 / 200 mm: 800 kg each

Technical data / specifications

• Commercial name: Swivel castor in hygienic design with white polyamide wheel (NY series).
• Materials: fork/bracket stainless steel EN 1.4301 / AISI 304; wheel centre polyamide; bearings: plain bearing standard, options: stainless roller bearing or sealed precision stainless ball bearing.
• Wheel tread hardness: Shore D 75.
• Wheel diameters available: 80, 100, 125, 150, 200 mm (model-dependent).
• Tread widths: 32–50 mm depending on wheel diameter.
• Centre hole / bolt hole: 13 mm (standard for listed models).
• Temperature range: typically -40 °C to +80 °C (one variant -30 °C min).
• Standard: EN12532.
• Load capacities: dynamic 200–400 kg per wheel; static 400–800 kg per wheel (model-dependent).
• Design features: sealed stainless housing, flush surfaces for washdown, non-marking white polyamide tread; options for total lock and different mounting types.
