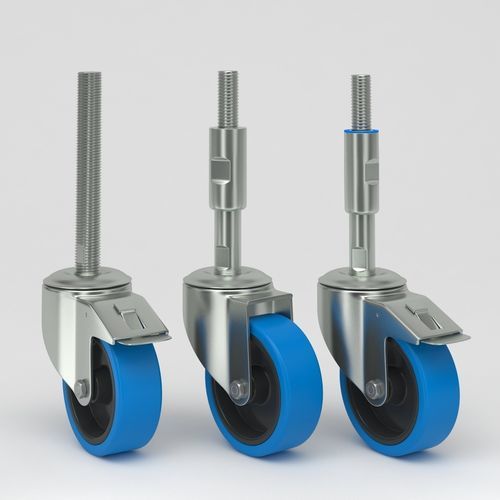

Swivel caster Q-RND-3B-HSC-Mxx-Lxxx series

base platethreaded studelastic

Overview
Leveling swivel castors engineered for hygienic environments such as food processing, pharmaceutical production and cleanrooms. Stainless steel construction combined with a blue non-marking elastic tire ensures floor protection, easy cleaning and visual identification in high-traffic areas. Integrated leveling mechanism enables height adjustment for stable, vibration-reduced equipment positioning.

Main features

• Fork and structural parts in stainless steel (EN 1.4301 / AISI 304)
• Double ball bearing swivel head for smooth rotation
• Wheel centre made of polyamide
• Tread: blue non-marking elastic tire (polyurethane/elastomer) — Shore A 65
• Wheel axle: nut-mounted or plain bearing depending on version
• Bearing options: stainless roller bearing or sealed precision stainless ball bearing
• Integrated leveling mechanism (height-adjustable swivel castor)

Variants & key product types described

• Leveling swivel castor with total lock (versions with full threaded spindle)
• Leveling swivel castor with total lock and spindle protected by hygienic sleeve (sleeve acts as counter nut; optional hygienic top cover)
• Leveling swivel castor with stainless steel bracket (plate fork mounting)

Fully-threaded spindle mounting options
Fully-threaded spindle A2-70 HSC: Mxx = M16, M20, M24, M30, M36, M42, M48. Lengths Lxxx = 70 mm, 100 mm, 120 mm, 150 mm, 180 mm, 200 mm, 230 mm, 280 mm, 310 mm. Material: stainless steel EN 1.4301 / AISI 304.

Spindle with protecting sleeve mounting options
Spindle with protecting sleeve A2-70 (LC-HSC threads): M16, M20, M24, M30, M36, M42, M48. Sleeve lengths: 135 mm, 175 mm, 215 mm, 255 mm, 295 mm. Material: stainless steel EN 1.4301 / AISI 304.

Applications
Used on food processing lines, pharmaceutical production equipment, laboratory and cleanroom installations where hygiene, floor protection and easy cleaning are required. Blue tread enhances visibility for safety and avoids tire marks on floors.

Hygienic & safety design notes

• Exposed thread can be covered by hygienic sleeve acting as counter nut for safety
• Optional hygienic top cover available
• Design minimises dirt and moisture traps to support sanitation protocols

Technical data (example for GN080 / GN100 / GN125 variants)
Model headers: GN080-Q-RND-3B-HSC-Mxx-Lxxx | GN100-Q-RND-3B-HSC-Mxx-Lxxx | GN125-Q-RND-3B-HSC-Mxx-Lxxx. Units: °C / mm / kg. Wheel diameter D: 80 mm | 100 mm | 125 mm. Width of tread B: 35 mm | 36 mm | 36 mm. Offset O: 38 mm | 38 mm | 41 mm. Swivel radius: 74 mm | 84 mm | 95 mm. Swivel interference: 222 mm | 238 mm | 268 mm. Overall height H: 103 mm | 126 mm | 154 mm. Weight: 0.68 kg | 0.76 kg | 0.94 kg. Load capacity (dynamic): 150 kg | 150 kg | 150 kg. Load capacity (static): 300 kg | 300 kg | 300 kg.

Alternative bracket (stainless steel bracket) example table
Model headers: GN080-RND-3B-HSC-Mxx-Lxxx | GN100-RND-3B-HSC-Mxx-Lxxx | GN125-RND-3B-HSC-Mxx-Lxxx. Wheel diameter D: 80 mm | 100 mm | 125 mm. Width of tread B: 35 mm | 36 mm | 36 mm. Offset O: 38 mm | 38 mm | 41 mm. Swivel radius: 74 mm | 84 mm | 95 mm. Swivel interference: 156 mm | 176 mm | 207 mm. Overall height H: 103 mm | 126 mm | 154 mm. Weight: 0.63 kg | 0.69 kg | 0.84 kg. Load capacity (dynamic): 150 kg | 150 kg | 150 kg. Load capacity (static): 300 kg | 300 kg | 300 kg.

Hygienic leveling castor technical data

• Tread hardness: Shore A 65
• Temperature range: -30 °C to +80 °C
• Standard: EN 12532

Notes
Multiple mounting and sealing options available (full threaded spindle, spindle with protecting sleeve, sealed protecting sleeve). Choose bearing type and mounting style according to application and cleaning requirements.
