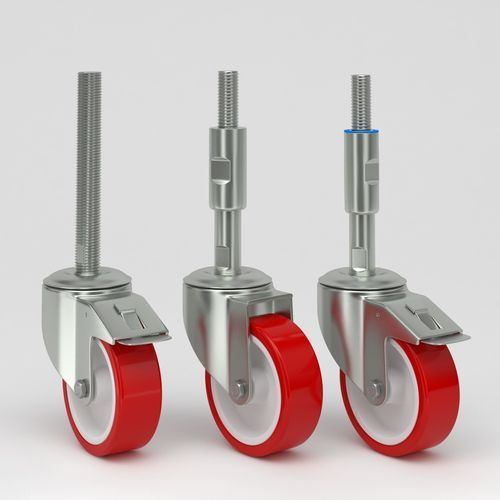

Swivel caster Q-RND-3R-HSC-Mxx-Lxxx series

leveling

Overview
A leveling castor with stainless spindle and red polyurethane tread providing mobility, precise leveling and corrosion resistance for hygienic and industrial environments (food processing, pharmaceuticals, packaging, laboratories). The integrated leveling mechanism enables quick, accurate height adjustment to stabilize equipment and reduce vibration.

Design & Materials
Fork and mounting components in stainless steel EN 1.4301 / AISI 304. Wheel centre in polyamide. Tread in red polyurethane (Shore D 48). Bearing options: stainless plain bearing; optional sealed stainless roller bearing or sealed precision stainless ball bearing.

Features

• Height-adjustable leveling mechanism for fast, precise leveling.
• Stainless steel spindle for corrosion resistance in wet or chemical environments.
• Red polyurethane tread: wear resistant, non-marking, low rolling resistance, shock absorption and floor protection.
• Double ball bearing swivel head for smooth rotation.
• Available with total lock (total brake) option.
• Optional hygienic protecting sleeve for spindle (covers thread and functions as counter nut) and optional hygienic top cover for safe, easy cleaning.

Mounting & Bearing Options

• Fully-threaded spindle mounting A2-70 HSC: thread sizes M16, M20, M24, M30, M36, M42, M48. Length options L = 70, 100, 120, 150, 180, 200, 230, 280, 310 mm. Material: stainless steel EN 1.4301 / AISI 304.
• Spindle with protecting sleeve mounting A2-70 LC-HSC: thread sizes M16–M48. Sleeve lengths = 135, 175, 215, 255, 295 mm. Material: stainless steel EN 1.4301 / AISI 304.
• Stainless-bracket versions: fork bracket made from 3 mm EN 1.4301 / AISI 304 stainless steel plate.

Available Variants / Example Model Codes
Typical model codes indicate wheel diameter and mounting type, for example: TU080-Q-RND-3R-HSC-Mxx-Lxxx, TU100-Q-RND-3R-HSC-Mxx-Lxxx, TU125-Q-RND-3R-HSC-Mxx-Lxxx and variants with LC-HSC or bracket versions.

Technical tables (example values by wheel diameter)
Wheel diameter D / Tread width B / Offset O / Swivel radius / Swivel interference / Overall height H / Weight / Dynamic load / Static load
80 mm / 30 mm / 38 mm / 74 mm / 222 mm / 103 mm / 0.64 kg / 150 kg / 300 kg
100 mm / 36 mm / 38 mm / 84 mm / 238 mm / 126 mm / 0.78 kg / 200 kg / 400 kg
125 mm / 37 mm / 41 mm / 95 mm / 268 mm / 154 mm / 0.92 kg / 200 kg / 400 kg

Stainless-bracket variant (example values)
80 mm / 30 mm / 38 mm / 74 mm / 156 mm / 103 mm / 0.59 kg / 150 kg / 300 kg
100 mm / 36 mm / 38 mm / 84 mm / 176 mm / 126 mm / 0.71 kg / 200 kg / 400 kg
125 mm / 37 mm / 41 mm / 95 mm / 207 mm / 154 mm / 0.81 kg / 200 kg / 400 kg

Hygienic features
Spindle thread can be covered by a hygienic sleeve that also functions as a counter nut. Design optimized for easy cleaning and reduced contamination risk; optional hygienic top cover available.

Applications
Suitable for food processing, pharmaceutical production, packaging lines and laboratory equipment where hygiene, corrosion resistance and stable mobility are required.

Characteristics / Technical specifications

• Product family: TU series leveling castors
• Fork and mounting material: stainless steel EN 1.4301 / AISI 304 (3 mm plate for bracket versions)
• Wheel centre: polyamide
• Tread: red polyurethane (Shore D 48)
• Bearing options: stainless plain bearing; optional sealed stainless roller or precision ball bearing
• Available wheel diameters: 80, 100, 125 mm
• Tread widths: 30 mm (80), 36 mm (100), 37 mm (125)
• Offsets O: 38 mm (80/100), 41 mm (125)
• Swivel radius: 74 mm (80), 84 mm (100), 95 mm (125)
• Overall heights H: 103 mm, 126 mm, 154 mm (depending on mounting)
• Weights: approx. 0.59–0.92 kg depending on variant
• Dynamic load capacity: 150–200 kg (depending on diameter and variant)
• Static load capacity: 300–400 kg (depending on diameter and variant)
• Fully-threaded spindle options: M16, M20, M24, M30, M36, M42, M48 with multiple length options (70–310 mm)
• Spindle with protecting sleeve options: threads M16–M48 with sleeve lengths 135–295 mm
• Temperature range: -20 °C to +75 °C
• Standard: EN 12532
