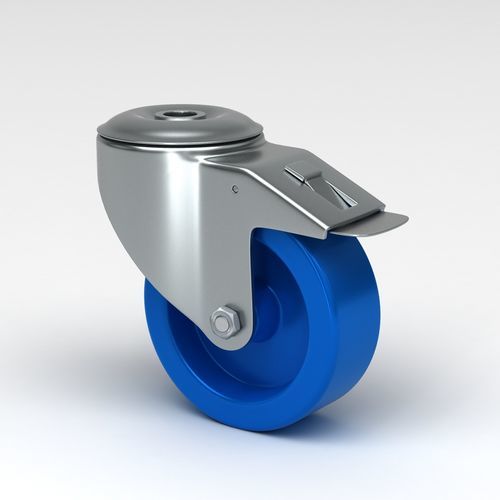

Swivel caster Q-RND-3B series

for medical equipmentfor transportnon-marking

Overview
Swivel castors in hygienic design with blue polyamide wheels provide high hygiene, corrosion resistance and easy cleaning for food processing, pharmaceutical and cleanroom environments. Constructed with stainless steel components and sealed bearings, available in multiple mounting and wheel variants.

Key features

• Certified Hygienic Design – Compliant with EHEDG and FDA regulations for sanitary requirements.
• Blue Polyamide Wheel – Non-marking polyamide resistant to chemicals, corrosion and high-pressure cleaning.
• Stainless Steel Components – Swivel housing and mounting hardware in AISI 304 / AISI 316 stainless steel to prevent rust and contamination.
• Sealed Bearings – Fully encapsulated bearings protect against dust, water and cleaning agents.
• Smooth Mobility & Load Capacity – Engineered for effortless maneuverability and heavy loads.

Applications

• Food processing plants – Transporting equipment in sanitary production areas.
• Pharmaceutical industries – Contamination-free mobility in sterile environments.
• Medical & cleanrooms – Supporting high hygiene standards in hospitals and laboratories.

Hygienic swivel castor with total lock and wheel centre made of polyamide — Technical table
Model | NY080-Q-RND-3B | NY100-Q-RND-3B | NY125-Q-RND-3B | NY160-Q-RND-3B | NY200-Q-RND-3B
Technical Data | °C / mm / kg | °C / mm / kg | °C / mm / kg | °C / mm / kg | °C / mm / kg
Wheel diameter | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of Tread | 32 mm | 36 mm | 37 mm | 40 mm | 50 mm
Hardness of tread | Shore D 75 | Shore D 75 | Shore D 75 | Shore D 75 | Shore D 75
Centre hole | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm
Offset | 38 mm | 38 mm | 41 mm | 53 mm | 53 mm
Swivel Interference | 223 mm | 238 mm | 268 mm | 334 mm | 370 mm
Overall height | 103 mm | 126 mm | 154 mm | 190 mm | 235 mm
Temperature | -40 / +80 °C | -40 / +80 °C | -40 / +80 °C | -40 / +80 °C | -40 / +80 °C
Standard | EN12532 | EN12532 | EN12532 | EN12532 | EN12532
Weight | 0.72 kg | 0.836 kg | 0.8658 kg | 1.4338 kg | 1.7988 kg
Load capacity (dynamic) | 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static) | 400 kg | 400 kg | 400 kg | 800 kg | 800 kg

Hygienic swivel castor with stainless steel bracket single bolt hole — Technical table
Model | NY080-RND-3B | NY100-RND-3B | NY125-RND-3B | NY160-RND-3B | NY200-RND-3B
Technical Data | °C / mm / kg | °C / mm / kg | °C / mm / kg | °C / mm / kg | °C / mm / kg
Wheel diameter | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm
Width of Tread | 32 mm | 36 mm | 37 mm | 40 mm | 50 mm
Hardness of tread | Shore D 75 | Shore D 75 | Shore D 75 | Shore D 75 | Shore D 75
Centre hole | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm
Offset | 38 mm | 38 mm | 41 mm | 53 mm | 53 mm
Swivel Radius | 74 mm | 88 mm | 103.5 mm | 334 mm | 370 mm
Swivel Interference | 148 mm | 176 mm | 207 mm | 190 mm | 235 mm
Overall height | 103 mm | 126 mm | 154 mm | 190 mm | 235 mm
Temperature | -40 / +80 °C | -40 / +80 °C | -30 / +80 °C | -40 / +80 °C | -40 / +80 °C
Standard | EN12532 | EN12532 | EN12532 | EN12532 | EN12532
Weight | 0.615 kg | 0.696 kg | 0.7598 kg | 1.4338 kg | 1.7988 kg
Load capacity (dynamic) | 200 kg | 200 kg | 200 kg | 400 kg | 400 kg
Load capacity (static) | 400 kg | 400 kg | 400 kg | 800 kg | 800 kg

Hygienic castor technical data
Hardness of tread: Shore D 75
Temperature range: -40 / +80 °C (note: one variant lists -30 / +80 °C for a 125 mm entry in one mounting type)
Standard: EN 12532
Material: stainless steel EN 1.4301 / AISI 304

Caractéristiques / spécifications techniques

• Series: NY (multiple sizes available: 80, 100, 125, 150, 200 mm)
• Wheel material: Polyamide (blue), non-marking
• Tread hardness: Shore D 75
• Bearing options: stainless roller bearing or precision stainless ball bearing (sealed)
• Fork/bracket material: 3 mm EN 1.4301 / AISI 304 stainless steel
• Mounting variants: total lock with wheel centre made of polyamide; stainless steel bracket with single bolt hole
• Operating temperature: typically -40 / +80 °C
• Standards: EN 12532
• Load capacities (examples): dynamic 200–400 kg depending on wheel size; static up to 800 kg
