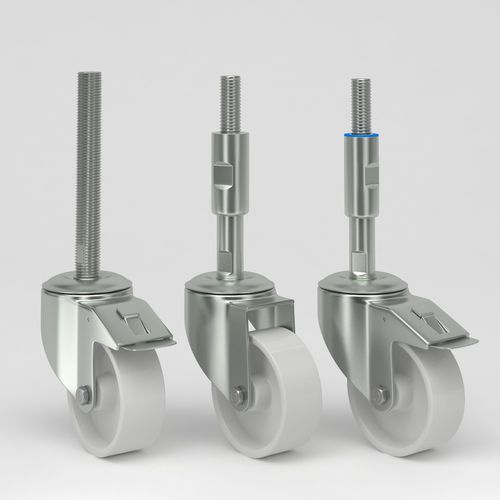

Swivel caster S010NY080PF-Q-B13-HSC-Mxx-Lxxx threaded studdoublepolyamide
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- threaded stud
- Other characteristics
- double, leveling, steel, polyamide, stainless steel, plain bearing, with roller bearing
- Load capacity
250 kg
(551 lb)- Wheel diameter
80 mm, 100 mm, 125 mm
(3.15 in, 3.937 in, 4.921 in)- Tread width
32 mm, 36 mm
(1.26 in, 1.42 in)
Description
Fork made of stainless steel, double ball bearing swivel head, wheel axle with nut, spindle fitting, wheel centre made of polyamide, stainless plain bearing
Also supplied with roller bearing (stainless) or precision ball bearing (stainless), sealed.
Leveling swivel castor with total lock and wheel centre made of polyamide and full threaded spindle
Swivel castor with total lock, fork bracket made of 3mm EN 1.4301 / AISI 304 stainless steel plate, double ball bearing swivel head, wheel axle with plain bearing, full threaded spindle fitting.
Fully-threaded spindle mounting options
Fully-threaded spindle mounting A2-70 HSC: Mxx = M16, M20, M24, M30, M36, M42, M48
Fully-threaded spindle A2-70 length Lxxx = 70mm, 100mm, 120mm, 150mm, 180mm, 200mm, 230mm, 280mm, 310mm
Material stainless steel EN 1.4301 / AISI 304.
Leveling swivel castor with stainless steel bracket and full threaded spindle
Swivel castor, fork bracket made of 3mm EN 1.4301 / AISI 304 stainless steel plate, double ball bearing swivel head, wheel axle with plain bearing, full threaded spindle fitting.
Fully-threaded spindle mounting options
Fully-threaded spindle mounting A2-70 HSC: Mxx = M16, M20, M24, M30, M36, M42, M48
Fully-threaded spindle A2-70 length Lxxx = 70mm, 100mm, 120mm, 150mm, 180mm, 200mm, 230mm, 280mm, 310mm
Material stainless steel EN 1.4301 / AISI 304.
