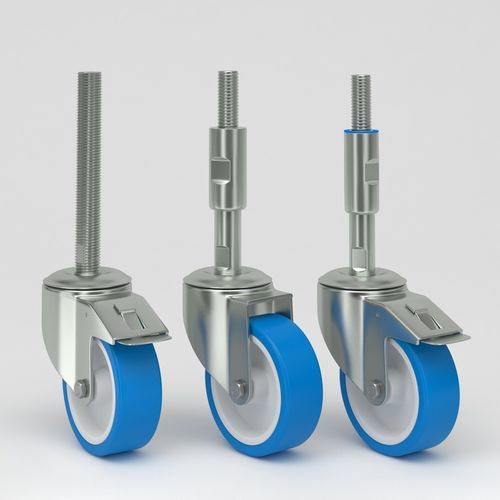

Swivel caster Q-RND-3B-HSC-Mxx-Lxxx series

base platethreaded studtube

Product overview
Leveling swivel castors in hygienic design for sanitary industrial environments such as food processing, pharmaceuticals and biotechnology. Constructed with stainless steel components to reduce corrosion and minimise dirt-trapping areas. Polyamide wheel centre with blue polyurethane tread for non-marking, wear-resistant, water- and chemical-resistant performance. Integrated leveling mechanism provides stable positioning when equipment is stationary.

Design & materials

• Fork: stainless steel EN 1.4301 / AISI 304 (3 mm where specified)
• Wheel centre: polyamide
• Tread: blue polyurethane (Shore D 48)
• Bearings: stainless roller bearing or sealed precision stainless ball bearing; stainless plain bearing and double ball bearing swivel head options available
• Spindles and brackets: stainless steel EN 1.4301 / AISI 304

Key benefits

• Blue polyurethane tread: non-marking, abrasion-resistant, resistant to water, chemicals and cleaning agents
• Hygienic stainless steel construction: smooth, sealed surfaces for easier cleaning and sanitisation
• Built-in leveling mechanism: improves stability and reduces vibration when stationary

Castor variants and technical tables
Leveling swivel castor with total lock (full threaded spindle)
Model examples: TU080-Q-RND-3B-HSC-Mxx-Lxxx | TU100-Q-RND-3B-HSC-Mxx-Lxxx | TU125-Q-RND-3B-HSC-Mxx-Lxxx
Wheel diameter D: 80 mm | 100 mm | 125 mm
Width of tread B: 30 mm | 36 mm | 37 mm
Offset O: 38 mm | 38 mm | 41 mm
Swivel radius: 74 mm | 84 mm | 95 mm
Swivel interference: 222 mm | 238 mm | 268 mm
Overall height H: 103 mm | 126 mm | 154 mm
Weight: 0.64 kg | 0.78 kg | 0.92 kg
Load capacity (dynamic): 150 kg | 200 kg | 200 kg
Load capacity (static): 300 kg | 400 kg | 400 kg

Fully-threaded spindle mounting options (A2-70 HSC)
Mxx = M16, M20, M24, M30, M36, M42, M48
Length Lxxx = 70 mm, 100 mm, 120 mm, 150 mm, 180 mm, 200 mm, 230 mm, 280 mm, 310 mm
Material: stainless steel EN 1.4301 / AISI 304.

Leveling swivel castor with stainless steel bracket (full threaded spindle)
Model examples: TU080-RND-3B-HSC-Mxx-Lxxx | TU100-RND-3B-HSC-Mxx-Lxxx | TU125-RND-3B-HSC-Mxx-Lxxx
Swivel interference: 156 mm | 176 mm | 207 mm
Overall height H and other dimensions as above; Weight: 0.59 kg | 0.71 kg | 0.81 kg; Load capacities: as above.

Spindle with protecting sleeve mounting options (LC-HSC)
Spindle threads LC-HSC: M16, M20, M24, M30, M36, M42, M48
Spindle lengths: 135 mm, 175 mm, 215 mm, 255 mm, 295 mm
Material: stainless steel EN 1.4301 / AISI 304.

Leveling swivel castor with total lock (spindle and protecting sleeve)
Model examples: TU080-Q-RND-3B-LC-HSC-Mxx-Lxxx | TU100-Q-RND-3B-LC-HSC-Mxx-Lxxx | TU125-Q-RND-3B-LC-HSC-Mxx-Lxxx
Technical data: see tables above for diameters, tread widths, offsets, radii, heights, weights and capacities.

Additional product notes

• Fork/bracket plate thickness: 3 mm stainless steel (EN 1.4301 / AISI 304) for many variants
• Bearing options: double ball bearing swivel head; wheel axle with nut; wheel axle with plain bearing or roller bearing options; sealed precision ball bearing available
• Optional hygienic sleeve or hygienic top cover for thread protection to prevent exposed threads

Technical specifications

• Product name: Leveling Castor in Hygienic Design with Blue Polyurethane Tread
• Brand: NHK Machinery Parts
• Materials: stainless steel EN 1.4301 / AISI 304; polyamide wheel centre; polyurethane tread (blue)
• Bearing types: double ball bearing swivel head; stainless roller bearing; sealed stainless precision ball bearing; stainless plain bearing options
• Wheel diameters available: 80 mm, 100 mm, 125 mm
• Tread widths: 30 mm (80 mm), 36 mm (100 mm), 37 mm (125 mm)
• Offsets (O): 38 mm (80/100 mm), 41 mm (125 mm)
• Overall heights (H): 103 mm (80 mm), 126 mm (100 mm), 154 mm (125 mm)
• Weight per unit: typically 0.59–0.92 kg depending on mounting and wheel size
• Load capacity (dynamic): 150–200 kg depending on wheel size/variant
• Load capacity (static): 300–400 kg depending on wheel size/variant
• Hardness of tread: Shore D 48
• Temperature range: -20 °C to +70 °C
• Standards: EN 12532
• Mounting options: full threaded spindle (M16–M48; multiple lengths), spindle with protecting sleeve (various M sizes and lengths), plate/bracket mountings
