Swivel caster Q-B13- 3B series

fixedbase platefor trolleys

Overview

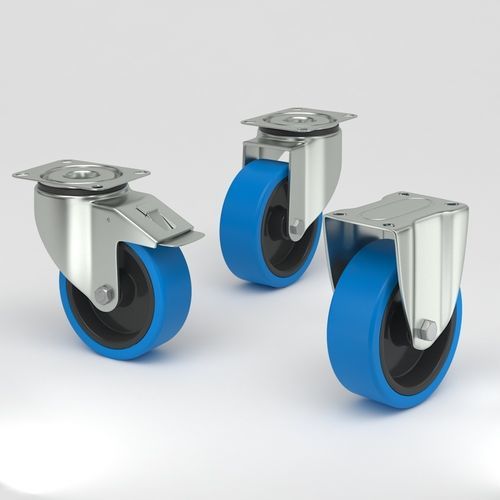

Industrial castors in hygienic design engineered for durability and cleanliness. Wheel centre made of polyamide with blue non-marking elastic tread. Forks and brackets manufactured in stainless steel (EN 1.4301 / AISI 304). Bearings available as stainless roller bearing or sealed precision stainless ball bearing.

Key features

• Stainless steel fork and plate/bracket (EN 1.4301 / AISI 304)
• Wheel centre: polyamide
• Tread: blue non-marking elastic-tire (hardness Shore A 65)
• Swivel head: double ball bearing swivel head or with sealed bearings
• Wheel axle: plain bearing or wheel axle with nut depending on variant
• Options: swivel castor with total lock, swivel castor with stainless steel plate bracket, fixed castor
• Temperature range: -30 / +80 °C
• Standard: EN 12532

Benefits

• Non-marking elastic tread protects and preserves floor surfaces
• Hygienic design with stainless components reduces contamination risk and eases cleaning
• Shock absorption and quiet operation over uneven surfaces
• Corrosion resistance suitable for food, pharmaceutical and healthcare environments

Applications

• Food processing
• Pharmaceutical manufacturing
• Healthcare facilities
• Carts, trolleys and machinery requiring sanitary mobility

Industrial swivel castor with total lock — product codes
GN080-Q-B13-3B | GN100-Q-B13-3B | GN125-Q-B13-3B | GN160-Q-B13-3B | GN200-Q-B13-3B

Technical data (swivel castor with total lock)
Wheel diameter: 80 mm | 100 mm | 125 mm | 160 mm | 200 mm
Width of tread: 35 mm | 36 mm | 36 mm | 40 mm | 40 mm
Hardness of tread: Shore A 65 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset: 34 mm | 34 mm | 32 mm | 53 mm | 53 mm
Swivel Interference: 222 mm | 236 mm | 248 mm | 334 mm | 370 mm
Overall height: 105 mm | 128 mm | 156 mm | 195 mm | 235 mm
Temperature: -30 / +80 °C (all sizes)
Standard: EN12532 (all sizes)
Weight: 0.607 kg | 0.739 kg | 0.8898 kg | 2.2512 kg | 2.5082 kg
Load capacity (dynamic): 200 kg | 150 kg | 200 kg | 300 kg | 330 kg
Load capacity (static): 400 kg | 300 kg | 400 kg | 600 kg | 660 kg

Industrial swivel castor with stainless steel plate bracket — product codes
GN080-B13-3B | GN100-B13-3B | GN125-B13-3B | GN160-B13-3B | GN200-B13-3B

Technical data (swivel castor with stainless steel plate bracket)
Wheel diameter: 80 mm | 100 mm | 125 mm | 160 mm | 200 mm
Width of tread: 35 mm | 36 mm | 36 mm | 40 mm | 40 mm
Hardness of tread: Shore A 65 (all sizes)
Size of plate: 105 x 85 mm | 105 x 85 mm | 105 x 85 mm | 135 x 110 mm | 135 x 110 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Offset: 34 mm | 34 mm | 32 mm | 53 mm | 53 mm
Swivel Radius: 74 mm | 84 mm | 95 mm | 133 mm | 153 mm
Swivel Interference: 148 mm | 168 mm | 190 mm | 266 mm | 306 mm
Overall height: 105 mm | 128 mm | 156 mm | 195 mm | 235 mm
Temperature: -30 / +80 °C (all sizes)
Standard: EN12532 (all sizes)
Weight: 0.587 kg | 0.699 kg | 0.7878 kg | 2.1432 kg | 2.3162 kg
Load capacity (dynamic): 200 kg | 150 kg | 200 kg | 300 kg | 330 kg
Load capacity (static): 400 kg | 300 kg | 400 kg | 600 kg | 660 kg

Industrial fixed castor with polyamide centre and elastic tread — product codes
GN080-FIX-3B | GN100-FIX-3B | GN125-FIX-3B | GN160-FIX-3B | GN200-FIX-3B

Technical data (fixed castor)
Wheel diameter: 80 mm | 100 mm | 125 mm | 160 mm | 200 mm
Width of tread: 35 mm | 36 mm | 36 mm | 40 mm | 40 mm
Hardness of tread: Shore A 65 (all sizes)
Size of plate: 103 x 85 mm | 103 x 85 mm | 103 x 85 mm | 137 x 111 mm | 137 x 111 mm
Plate hole centres: 82×62 / 78×58 mm | 82×62 / 78×58 mm | 82×62 / 78×58 mm | 110×85 / 100×75 mm | 110×85 / 100×75 mm
Plate hole: 9 mm | 9 mm | 9 mm | 11 mm | 11 mm
Overall height: 105 mm | 128 mm | 156 mm | 195 mm | 235 mm
Temperature: -30 / +80 °C (all sizes)
Standard: EN12532 (all sizes)
Weight: 0.447 kg | 0.500 kg | 0.7638 kg | 1.7362 kg | 1.9462 kg
Load capacity (dynamic): 200 kg | 150 kg | 200 kg | 300 kg | 330 kg
Load capacity (static): 400 kg | 300 kg | 400 kg | 600 kg | 660 kg

Industrial castor technical data (summary)
Hardness of tread: Shore A 65
Temperature range: -30 / +80 °C
Standard compliance: EN 12532
Material: stainless steel EN 1.4301 / AISI 304 for fork/bracket/plate

Notes
Available variants include swivel castors (with and without total lock), fixed castors and different mounting options (plate mount). Bearings: stainless roller bearing or sealed precision ball bearing (stainless) are supplied depending on variant.

caractéristiques / spécifications techniques

• Material (structural): Stainless steel EN 1.4301 / AISI 304
• Wheel centre material: Polyamide
• Tread: Blue non-marking elastic tire, Shore A 65
• Operating temperature: -30 / +80 °C
• Standards: EN12532
• Available wheel diameters: 80 mm, 100 mm, 125 mm, 160 mm, 200 mm
• Load capacity (dynamic) per size: up to 330 kg (depending on model)
• Load capacity (static) per size: up to 660 kg (depending on model)
• Mounting options: plate mount (various plate sizes and hole patterns)
• Bearing options: stainless roller bearing or sealed stainless precision ball bearing
