Conventional DC motors use a stationary magnet with a rotating armature combining the commutation segments and brushes to provide automatic commutation. In comparison, the brushless DC motor is a reversed design: the permanent magnet is rotating whereas the windings are part of the stator and can be energized without requiring a commutator-and-brush system. Therefore this motor type achieves very long, trouble-free life even while operating at very high speeds.
Key Attributes:
- Frame sizes range from 12.7 mm (0.5 in.) to 58 mm (2.3 in.)
- Speeds up to 100 000 rpm
- Torque range of 3.3 mNm (0.32 oz. in.) to 316 mNm (44.7 oz. in.)
- Speed, direction, current control option are available
- Autoclavable features available
- Versions without hall sensor
- Versions with hall effect sensors
Characteristics:
- Essentially Linear torque/speed curve, with torque proportional to current and speed proportional to voltage
- No mechanical commutation via brushes
- Improved heat dissipation
- No detent torque
- Tipically used in application with variations of speed or load
- Typically used in incremental motion
Advantages:
- Ease of speed and position control
- Very long life, high reliability, insensitive to environment (no arcing), motor is dust free with reduced audible and electrical noise levels
- Overload capability
- Excellent velocity smoothness
- Very simple commutation circuitry
- Very precise speed and position control
|
|
No cogging or preferred rotor position
No iron losses
Extremely low current consumption
Extremely light and compact
Smooth and accurate speed, position, and torque control
Electronic commutation for extremely long operational lifetime
High precision gearboxes available in all sizes
Control electronics available for all motor series
Available as linear actuator
Custom systems available from design to production
|
|
We are pleased to introduce the new BLDC brushless micro gearmotors. This new series completes Intecnos range of DC micro gearmotors and offers ideal solutions for sectors such as industrial automation, automatic doors and windows, vending and many others.
The BLDC motors from the BL series are available in 3 sizes (torque from 0,05 Nm to 0,43 Nm) and they can be supplied with an integrated (IE version) or external drive. They are compact and low-cost being equipped with Hall sensors. These motors have a low voltage 24V, which optmises safety in the workplace, particularly in applications where the worker can be in direct contact with the motor.
To complete the gearmotor, we would use the reliable micro planetary gearbox from our standard series.
Gearmotors made up of BL motors and LN (low noise) gearboxes are particularly suitable for applications in the medical field and for applications that require a controlled movement.
|
|
|
Baldor DC Gearmotors are available in 90 & 180 volts in both right angle and parallel shaft designs with industry standard mounting configurations. The Right Angle single reduction units feature an Internal Expansion Bladder and Mobil® SHC634 Synthetic oil for long maintenance free operation. The Internal Expansion Bladder keeps the lubrication free of contaminates by eliminating the need to vent the gearbox and allows all position mounting. This feature is exclusive to Baldor.
|
|
|
DC Gear Motors: STOCK SERVICE Program gear motors can be purchased in small quantities from 0,5 up to 69 W. Spur gear with DC motor, Worm gear with DC motor, Wolfrom gear with DC motor, Planetary gear with DC motor
|
|
Mechanically commutated permanent magnet DC motors
Mechanically commutated permanent magnet motors are designed for operation with 24 V direct voltage and provide a nominal torque and a nominal speed with this voltage.
The exact motor speed is dependent on the required torque, according to the motor characteristic. Speed control is possible in conjunction with external open-loop control.
The lifetime of a mechanically commutated permanent magnet motor is designed for 3000 hours (operating factor CB=1 and nominal load) (carbon brush wear).
|
|
|
|
|
|
The new Intecno micro gearmotors series characteristics:
- Coaxial arrangement of the input and output
- Compact design
- Advantageous torque with minimum space requirements
- Low moments of inertia
- Suitable for continuous, reversing and intermittent operation
- Can be installed in any mounting position
Planetary gearboxes stand out for having a wide range of reduction ratios, It’s possible to obtain a total of 72 reduction ratios from i=3.7: 1 (1 stage) to i= 2076:1 (4 stages). Planetary gearboxes are lubricated with grease and are therefore maintenance-free.
This product can be personalized due to the possibility of using metal, plastic or material mix versions. The LN (low noise) version is also available: It significantly lowers the gearbox noise.
The distinguishing features of D.C. motors in general are their high start torque as well as a torque/speed ratio suitable for high work loads. Another important characteristic of the D.C. motor is its density.
Features:
- Magnetic field generated by permanent magnets
- Available in 5 sizes: diameter 35,42, 52, 65, 80 mm
- Low voltage power supply, 12 or 24 Vdc
- Power ratings available from 8 to 140 W S2
Intecno micro gearmotors are perfect for many applications, in any sector where both small dimensions and good performances are required. These characteristics are important in the medical sector, robotics and also in electric vehicles. Other important fields are shutters for windows/doors where the movement required can be obtained by Intecno’s small DC motors and planetary gears. Options such as a bearing mounted input shafts and DC motor controls are also available to complete the product.
|
|

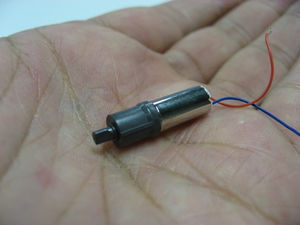

DC Electric Micro Gearmotor
* Gear Coreless motor
Diameter : Ø7 to 18 mm
Voltage 3 v to 12v
Gear type: Spur gear :Planeteary gear
Several gear ratio are available
* Gear Brushless motor
Diameter Ø1.5 to 30 mm
Voltage 3 to 24 v
Gear type : Spur gear , Planetary gear
Several gear ratio are available
|
|
Ultra flat dimensions
No cogging or preferred rotor position
No iron losses
Extremely low current consumption
Low starting voltage
Low rotor inertia for extremely fast acceleration and braking
Extremely light and compact
Custom systems available from design to production
Very cost effective
Precision gearboxes available in all sizes
|
|
|

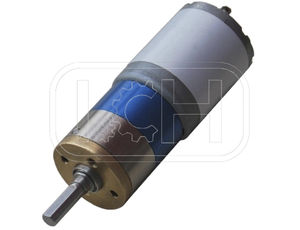

22 mm planetary gear motor - The gear motors are available in 2-, 3- and 4-stage versions, and gear ratios range from 19:1 up to 809:1. Currently nine different gear ratios in 12V and 24V versions are in stock, ready to ship. With these versions, torque values of 150 to 800 mNm can be achieved. The gears are made entirely of plastic and run very smoothly.
|
|
Planetary Gearheads
Noiseless, gearheads with maximum noise reduction Focus, with minimum circumferential backlash
Performax®, the milestone in gear engineering (patent pending) with its high performance and extreme smoothness
Performax® High Radial Load, the downstream development from the Performax® series for major radial loads and smoothness not restricted
by radial loads
|
|
|
|
|
|
Conventional DC motors use a stationary magnet with a rotating armature combining the commutation segments and brushes to provide automatic commutation. In comparison, the brushless DC motor is a reversed design: the permanent magnet is rotating whereas the windings are part of the stator and can be energized without requiring a commutator-and-brush system. Therefore this motor type achieves very long, trouble-free life even while operating at very high speeds.
Key Attributes:
- Frame sizes range from 12.7 mm (0.5 in.) to 58mm (2.3 in.)
- Speeds up to 100 000 rpm
- Torque range of 3.3 mNm (0.32 oz. in.) to 316 mNm (44.7 oz. in.)
- Speed, direction, current control option are available
- Autoclavable features available
- Versions without hall sensor
- Versions with hall effect sensors
Characteristics:
- Essentially Linear torque/speed curve, with torque proportional to current and speed proportional to voltage
- No mechanical commutation via brushes
- Improved heat dissipation
- No detent torque
- Tipically used in application with variations of speed or load
- Typically used in incremental motion
Advantages:
- Ease of speed and position control
- Very long life, high reliability, insensitive to environment (no arcing), motor is dust free with reduced audible and electrical noise levels
- Overload capability
- Excellent velocity smoothness
- Very simple commutation circuitry
- Very precise speed and position control
|
|
22B-D Series Parallel Shaft BLDC Gearmotor
Horsepower: 1/16 HP
Rated Torque: 5.8 to 40 lb-in
Speed: 14 to 417 RPM
22B-Z Series Parallel Shaft BLDC Gearmotor
Horsepower: 1/16 - 1/11 HP
Rated Torque: 10 to 100 lb-in
Speed: 14 to 417 RPM
22B/SR-D and 22B/SR-Z Series INTEGRAmotor Parallel Shaft BLDC Gearmotor
Control Type: Analog Input (0-5 V)
Horsepower: 1/16 - 1/11 HP
Rated Torque: 5.8 to 100 lb-in
Speed: 0.7 to 417 RPM
22B/FV-D and 22B/FV-Z Series INTEGRAmotor Parallel Shaft BLDC Gearmotor
Control Type: Digital Input (PWM)
Horsepower: 1/16 - 1/11 HP
Rated Torque: 5.8 to 100 lb-in
Speed: 0.3 to 417 RPM
34B-W Series Parallel Shaft BLDC Gearmotor
Horsepower: 1/5 HP
Rated Torque: 5.8 to 100 lb-in
Speed: 0.6 to 417 RPM
34B-E and 34B-F Series Parallel Shaft BLDC Gearmotor
Horsepower: 1/16 - 1/11 HP
Rated Torque: 25 to 350 lb-in
Speed: 8.3 to 500 RPM
|
|
|
|
|
|
24A-3F Series DC Right Angle Gearmotor
Horsepower: 1/17 HP
Rated Torque: 5.2 to 22 lb-in.
Speed: 42 to 500 RPM
24A-3F/H Series DC Right Angle Hollow Shaft Gearmotor
Horsepower: 1/23 | 1/11 HP
Rated Torque: 8.2 to 37 lb-in.
Speed: 29 to 500 RPM
24A-3RD Series DC Right Angle Gearmotor
Horsepower: 1/29 | 1/25 | 1/17 HP
Rated Torque: 92 to 147 lb-in.
Speed: 0.7 to 12.5 RPM
33A-5R Series DC Right Angle Gearmotor
Horsepower: 1/12 to 1/6 HP
Rated Torque: 17 to 77 lb-in.
Speed: 50 to 200 RPM
33A-5F and 33A-5N Series DC Right Angle Gearmotor
Horsepower: 1/8 to 1/4 HP
Rated Torque: 11 to 109 lb-in.
Speed: 43 to 500 RPM
33A-GB Series DC Right Angle Gearmotor
Horsepower: 1/8 to 1/4 HP
Rated Torque: 151 to 380 lb-in.
Speed: 6.2 to 42 RPM
33A-GB/H Series DC Right Angle Hollow Shaft Gearmotor
Horsepower: 1/8 to 1/4 HP
Rated Torque: 151 to 380 lb-in.
Speed: 6.2 to 42 RPM
33A-5H Series DC Right Angle Gearmotor
Horsepower: 1/6 to 1/3 HP
Rated Torque: 37 to 192 lb-in.
Speed: 36 to 250 RPM
33A-5L/H Series DC Right Angle Hollow Shaft Gearmotor
Horsepower: 1/8 to 1/4 HP
Rated Torque: 11 to 109 lb-in.
Speed: 43 to 500 RPM
42A-5L Series DC Right Angle Gearmotor
Horsepower: 1/6 HP
Rated Torque: 37 to 77 lb-in.
Speed: 50 to 200 RPM
42A-5N Series DC Right Angle Gearmotor
Horsepower: 1/4 HP
Rated Torque: 24 to 79 lb-in.
Speed: 62 to 500 RPM
42A-5H Series DC Right Angle Gearmotor
Horsepower: 1/3 to 1/2 HP
Rated Torque: 52 to 264 lb-in.
Speed: 52 to 250 RPM
42A-GB Series DC Right Angle Gearmotor
Horsepower: 1/4 HP
Rated Torque: 231 to 380 lb-in.
Speed: 8.6 to 42 RPM
42A-GB/H Series DC Right Angle Hollow Shaft Gearmotor
Horsepower: 1/4 HP
Rated Torque: 380 lb-in.
Speed: 8.6 RPM
|
|
• Many possibilities of coupling among motors and gearmotors (as shown in our catalogue).
Gearmotors
• Power supply: from 12 to 230Vac; 12 - 24 Vcc
• Ratios: from 25/3 to 22500
• Max efficiency power: max 4,8 W
|
|
BISON 480 SERIES
Designed to replace motor-speed reducer combinations, Series 483 parallel shaft gearmotors are more economical and occupy less space.
|
|
BISON 300 SERIES
For up to 350 in-lbs., our 300 series is unmatched in voltage and speed options.
Features
• Rear tapped hole for encoder mount
Optional Features / Accessories
• Junction-Box
• Shaft Mount Encoder
• Accessory Shaft
|
|
Specifications: 175 DC 90V Parallel Shaft Gearmotors Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Motor: Permanent Magnet. Rotation: Reversible Gearing: 1st-stage helical metal, balance spur metal. Bearings: Needle output, Needle throughout 175. Insulation: Class B minimum. Powder-Coat gloss black. Enclosure: TENV.
|
|
|
BISON GEAR 746 Series Right Angle DC Gearmotor. Available in right or left hand orientations. Base mount - any angle. Reversible rotation, replaceable brushes. PMDC motor, TENV lifetime oil bath, sealed and gasketed. Available in 1/15 Hp. Max torque of 68 in-lbs
|
|
Tensions: 12 or 24V mini – 100/110 – 200/220 – 230/250 – V maximum. Series
A.C./D.C. or shunt D.C. special Tensions on request.
Engines Classifies “ F” – on closed rolls of the dice, lubricated with life. All to 2
direction of rotation.
Reducers tight and lubricated with life. Entirely on rolls of the dice, screw
without treated steel end and polished. Coil in composite or bronze on request.
Assembly multiposition.
Flexible connections Wire PVC 30cm or box on terminals on request.
Details of the Performances Engine Page 44.
|
|
Planetary motor reducers dia. 38 with 110mm
Tension 12 or 24VCC
Acceptable couple 2,9 to 200 Nm
Speeds from 2 to 700 rpm - 1 with trains
Strong points:
- Robust Construction
- Capacity of high overload
- Reduced noise Level
- Optimal Lifespan
- Quality ratio/prices Excels
|
|
Voltage: 230 V (Supply Voltage Electronic Controller)
Frequency: 50 or 60 Hz
Power: 60 - 500 Watt
Motor Speeds: 1300, 2000, 3000 min-1
Type of protection: IP 54
Ratios:
Type 12 - 5:1 up to 55:1
Type 13 - 5:1 up to 56:1
Type 14 - 6,75:1 up to 60:1
|
|
A range of 12 to 180 Volt DC Motors with power outputs of 25-750W, available alone or in combination with a wide range of right angle and in-line gearboxes.
MOTORS
PM36 Custom permanent magnet motors up to 75 watts
PM45 Custom permanent magnet motors up to 250 watts.
PM55 Custom permanent magnet motors up to 300 watts.
PM62 Custom permanent magnet motors up to 500 watts.
GEARBOXES
G30 Custom non declutch right angle gearboxes to 11Nm torque.
G34 Custom declutch right angle gearboxes to 40Nm torque.
G46 Compact right angle gearboxes to 20Nm torque
G46M Compact right angle gearbox specifically for heavier duty mobility applications.
G63 Compact Hi-Duty right angle gearboxes to 25Nm torque.
G120 In-line gearboxes to 30Nm torque.
IMS In-line gearboxes to 120Nm torque
minimum order quantity: 100 units per annum
|
|
Our innovative gearbox design expertise together with today's materials have been combined to exploit the full output power generated by this widest range of motors in the most price sensitive way. Each gearbox type is offered with many ratios, torque of 10mNm to 20Nm is achievable through the range with speeds peaking at 500 rpm.
Low noise and extended life are characteristics that are high on our agenda.
Motors and gearboxes can be combined in a manner that is infinitely variable, providing our customer with a precise and complete solution for each and every application.
All motor gearbox packages can be supplied with flying leads, connectors and output drives. A unique feature of this product range is the option of a single or dual channel signal feedback.
|
|
|
Venture has a variety of gearboxes available, both motorized and manual. Many are customizable to suit your specific need. If we don't have exactly what you need contact us and we will be happy to investigate making a custom unit for your specific application.
|
|
GPG Series Gearmotors
A compact, lightweight and durable motor gearbox combination, the GPG series provides a high quality, low cost solution to suit a vast array of applications.
To provide maximum selection flexibility, 5 alternative gear ratios are offered as standard for each of 3 motor-gearbox models to suit 12, 24 or 36V rated voltages.
PML flat armature, ironless disc motors as used in applications worldwide, are renowned for their low inductance, zero spark, exceptional brush life. These qualities also ensure excellent EMC properties.
The GPG Series motors can be linked to PMA or PMC Drives
|
|
Electrical drives and couplings
Our range includes AC/DC linear drives, DC motors, AC/DC servo drives and frequency inverters. The range of couplings includes torsionally flexible and torsionally rigid couplings.

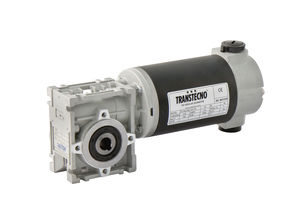

DC gear motor A+P with worm gear pair, 12 V DC
DC gear motor A P with worm gear pair, 24 V DC
|
|
DC motors up to 500W
Heidolph DC motors are compact and robust. Field loss is eliminated since field excitation of the motors is achieved by the use of permanent magnets achieving a high efficiency. The motors have an excellent dynamic response due to small mass moments of inertia.
Overview
Type 350 351 352 353 354
Power P2[W] 45 100 150 300 500
Voltage[V] 24 24 24 24 180
Nominal torque[Nm] 0.143 0.32 0.48 0.96 1.6
Nominal current [A] 2.6 5.54 8.33 15.6 3.3
|
|
|
High quality 3 pole 12mm ferrite motor with a spur gear open gearbox, steel geartrain and sintered bronze bearings. The double shaft unit features an ungeared extended shaft protruding from the motor case. This is suitable for mounting encoders or other drive components for feedback control or actuation. Used by modellers for animating static displays, robotics enthusiasts, and industrial actuators (e.g. locking mechanisms). Originally designed for focusing rings on professional video cameras.
|
|
GM Series
GM12
10mm x 12mm 6V or 12V DC gearmotor, available in five gear reduction ratios. 30:1, 63:1, 100:1, 210:1 and 298:1
|
|
|
|
