The RMS series of tunnel metal detectors (with circular aperture) are mainly used for inspecting bulk materials in pipeline systems (gravity or airborne feed). They are also often used in the ejection area of production machines to identify rejects or broken tools.
RMS metal detectors detect all magnetic and non-magnetic metals (steel, stainless steel, aluminium etc ), even those which may be contained in the product. If metal is detected a signal is sent to the process controller or a flap is activated to remove the contaminant.
The RMS metal detector range is mainly used in industries where hygiene standards are less important. They are used to inspect products which have little or no product effect.
The size of the metal detector depends on the application and nominal width of the pipeline.
|
|
| ... products without technical information |
| |
|
The extension beyond the edge and bevel ( with angle of 30°, 35°?37.5° or 45°) of the metallic plates from 4 to 50 mm of thickness is able be performed from the machines of the series B.
|
|
|
|
|
|
The BM-20 is a new generation, easy to use, portable, heavy duty machine designed for beveling steel plates and pipes prior to welding. This bevelling machine is fitted with two milling heads each holding six inserts, allowing smooth operation and exceptional efficiency. One set of inserts can last for up to 2000 meters of bevelled steel edge and allows to work with an output around 1.5 meters/minute (depending on the amount of the metal being removed).The BM-20 incorporates many safety features. It has a state of the art electronic control module protecting the operator, the machine and tools. It is equipped with guide rolls, which make it easy and light to operate.
BM-20 TECHNICAL DATA
Power supply: 1,1 KW, 230 VAC, on request 110 VAC
Motor: inductive with increased start-up current
Motor speed: 2.820 RPM
Tooling: 2 milling heads with 12 square inserts
Standard angles range: 15-60º
Weight: 20 kg
Optional functions: Facing-off, Pipe bevelling, R3-rounding
Ordering No. 230 VAC: FRE-0075-10-20-01-0
Ordering No. 110 VAC: FRE-0075-10-10-00-0
|
|
Metal conduits and connectors
NORRES-Metal hoses, MeC, MeC PVC and MeC PUR, have the following characteristics:
- especially robust
- high temperature resistance in many cases
- with or without a plastic coating
Applications
Suction hoses, transport hoses especially suitable:
- for electrical installations
- for flexible shafts
- for hydraulic and pneumatic hoses
- as robust protection conduit
Properties
- partially extreme heat resistant
- highly flexible
- increased resistance to tear, pressure and impact
- very robust
- capable of electro-static discharge (according to BGR 132, formerly ZH 1/200) by grounding.
up to IP 68 to EN/ IEC 60529
Temperature Range
from -40 °C up to +600 °C approx.
Construction and material
- MeC metal conduit; profiled metal band: hooked profile
Conduit connectors
Choosing the right connector is vital to ensure a secure connection for strip-wound metal conduits with or without a plastic coating and/ or braiding.
|
|
|
|
|
|
NORTIGHT® conduits and connectors
These extra-robust metal conduits featuring a seal and a thick coating are the number one choice among export-oriented engineering manufactures serving.
Applications
- for electrical installations, installation in switchboard plant, switch cabinets, mechanical engineering and robotics
- for hydraulic and pneumatic hoses
- for moving machine parts
Properties
- flexible
- increased resistance to tear, pressure and impact
- very high compression resistance
- tensile strength > 1.000 N
- gas and liquid tight
- good resistance to UV and ozone
- kink-proof
IP 68 to EN/ IEC 60529
Temperature Range
from -55 °C up to +145 °C (short time +160 °C approx.)
Construction and material
- profiled metal strip: hooked profile with special fibre sealing and from 1 1/2" double folded profile (galvanized steel); wall: high grade soft PVC, polyurethane or thermoplastic rubber (TPE)
Connectors
This connector series provides a perfect fit for all NORTIGHT® conduits. NORRES manufactures “straight” connectors as well as types with a 45° or 90° elbow and with metric or PG threads. These cable protection systems are supplied in standard packaging units to simply your order. The connectors are vibration resistant and reusable. Also they confirm to the requirements up to IP 67.
|
|
|
|
|
|
Metallic Cable Management
Adaptaflex have a choice of fifteen individual metallic conduit systems manufactured either in galvanized steel or stainless steel.
A range of 3 different conduit types provide a solution for liquid resistant specifications with a further 3 conduit options in liquid tight covered steel conduit for especially demanding environments. Conduit ranges are offered in nominal conduit size from 3mm for CCTV/roller shutter doors and for protecting fibre optics cables right up to 75mm for larger cable carrying capacity.
Overbraided conduits are particularly suitable for installation in abrasive environments. Where applications call for enhanced low fire hazard properties or EMI screening then there is the option of high specification tinned copper overbraided for greater EMI protection levels.
In addition a range of fittings are specifically designed to maintain system integrity including fixed and swivel fittings, straights, 90°, 45°, and a host of accessories including locknuts, enlargers, reducers and converters. Many of our conduit systems have industry recognised approvals including British Kitemark, CE Approval, UL Listing, NF, LUL, DB, and Lloyds Register amongst others.
Advantages
* High compression/crush strength
* Tensile strength - pull off load under tension
* Impact resistance
* Inherent fire protection on uncoated versions
* Corrosion resistant - stainless steel options
* Braided - High level EMI screening with tinned copper overbraided
* Greater temperature tolerances
|
|

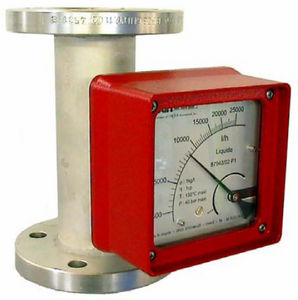

The H 250 flowmeter for liquids and gases is an all-metal flowmeter which operates on the float principle.
Depending on the flowrate, the float will assume a certain vertical position in the tube. The float position is transmitted by a magnetic coupling system to the scale. The flowmeter is designed for installation in a vertical pipe run with flow from bottom to top. The rugged construction of the H 250 variable-area flowmeter makes it particularly suitable for difficult application and environmental conditions. The H 250 flowmeter can be equipped with either the M9 or the M10 indicator.
|
|
|
The Brooks line of rugged metal tube variable area meters (rotameters) is ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include: globally approved for use in hazardous environments; needle valves for flow control; multiple connection options provide easy installation; many corrosion resistant material options for the metering of aggressive fluids; HART and 4-20mA outputs provide for remote flow monitoring; excellent repeatability provides consistent batch and/or process production. No power required reduces installation cost. Low-pressure drop allows for economical pump selection.
|
|
- Material : Aluminum alloy case with paint .
- Body wetted parts : in 316SS, PTFE lined, plastic. Others request.
- Indication via magnetic coupling (no sealed)
- Scales calibrated: in l/h ,m3/h ,kg/h , % , etc.
- Flow rates for :
Water : 30 l/h up to 100,000 l/h. (special ranges on request)
Air : 0.1 Nm3/h up to 180Nm3/h. (special ranges on request)
- Connection types :
BSP , NPT , flange type, trip clamp & sanitary(others on request)
- Connection size : 1" ~ 5"
- Mounting Length : 250 mm
- Temperature : 200°C(300°C option)
- Housing protection: IP65, CLASS I, GROUPS B, C &D; CLASS II, GROUPS E, F, & G; NEMA 4, 7, 9
- Accuracy : ±2% FS,(±1.6 F.S Option)
- Max pressure : 40 kg/cm2 (Option: up to 100 kg/cm2)
- Option : Switch available (Micro Switch : 3A/250VAC, 5A/30VDC, 0.4/125VDC)
|
|
- Material :316 stainless steel for case (body in stainless steel.)
- Indication:via magnetic coupling (no seals)
- Scales:calibrated in l/h ,m3 /h ,kg/h , %
- Flow rate:water-0.4 l/h up to 3500 l/h, Air-21 NL/h up to 110000 NL/h
- Connection types :BSP , NPT , flange type on request
- Working Temperature:
Combine with electronic parts: -40°C~+150°C
Combine without electronic parts: -40°C~ 180°C
- Working Pressure :Standard 100 kg/cm²
- Connection size :1/4" ~1 1/2"
- Housing protection : IP65
- Accuracy :± 2% FS (± 1.6% FS option)
|
|
- Material : Aluminum alloy painted for case (body in stainless steel.)
- Indication: via magnetic coupling (no seals)
- Scales: calibrated in l/h ,m /h ,kg/h , %
- Flow rate: water-0.4 l/h up to 1000 l/h, Air-21 NL/h up to 30000 NL/h
- Connection types : BSP , NPT , flange type on request
- Working Temperature:
Combine with electronic parts: -40°C~+150°C
Combine without electronic parts: -40°C~ 180°C
- Working Pressure : Standard 100 kg/cm²
- Connection size : 1/4" ~ 3/4"
- Housing protection : IP65
- Accuracy : ± 2% FS (± 1.6% FS option)
|
|
|
Models F65 and F150 Forged Body Flowmeters are variable area flowmeters featuring a compact, one-piece, black anodized forged aluminum body. Both models have a wraparound window for full 180° visibility of the flow tube and are available with aluminum, brass or 316 stainless steel wetted parts.
|
|
Monitoring of liquid and gaseous media, for example,
in refrigeration systems and refrigeration circuits
of welding machines, laser and piping systems, pumps,
compressors, hydraulic systems and many more.
Switching point and switching range
The switching point can be continuously adjusted within
the switching range. At the maximum scale setting, the
flow-rate can be significantly higher than shown.
|
|
- Piston type
- Fluid : Water , oil , other liquid available
- Flow range : 15 ~ 24000 l/h (at Water)
- Accuracy : ± 3 % F.S , On request : ± 2.5 % F.S
- Size : 1/4" to 2-1/2"
- Connection Size : NPT , Flange Type on Request
- Working Limits : Temperature : -10°C to +150°C
- Max. Pressure : 30 kg/cm²
- Housing enclosure : IP 65
- Housing material :
NS,CS,MS types-Aluminum Alloy
ES type-316SS
- Lens material:Safety glass
- Mounting:Vertical,horizontal available
- Materials : Brass , 316SS wetted parts
- Alarm switch : Micro switch,inductive switch available
|
|
NORRES-Metal hoses have the following characteristics:
- especially sturdy
- can be used in many applications
- high temperature resistance in many cases
- electrically conductive metal wall
Applications
Suction hoses, transport hoses especially suitable:
- for solids such as powder, chips, granulates, sand gravel, grain
- for gaseous media
- for silo vehicles
- for de-dusting and suction plants, air conditioning and ventilation technique
- as robust protection hose
- as conveying hose in glassworks, docks, steelworks, quarries, shipyards, cementworks etc.
Some properties of NORRES Metal hoses
- abrasion-proof
- flexible
- very robust
- capable of electro-static discharge (according to BGR 132, formerly ZH 1/200) by grounding.
Temperature Range
up to +600 °C approx.
|
|

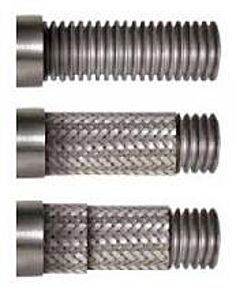

The starting materials for HYDRA® corrugated hoses are either seamless or longitudinally welded, thin-walled tubes in which corrugations are formed mechanically or hydraulically using special tools.
Corrugated hoses are absolutely leak-tight and are employed to convey pressurised liquids and gases or as vacuum lines. Corrugated hoses are also employed as inexpensive, flexible connecting elements, as filling hoses, to absorb movements, thermal expansions or vibrations.
Corrugated hoses lined with PTFE are used especially with particularly aggressive media.
|
|
|
Hose assemblies are custom made for each application according to size, pressure rating, temperature, configuration, and length. Hose fittings are available in stainless steel, aluminum, titanium, and nickel-based alloy materials.
|
|
| ... products without technical information |
| |
... see all the products in the category
Hoses
|
| ... products without technical information |
| |
|
|
|
|
TL 312 3D SPEED
The TL 312 3D Speed plant was designed to obtain the best performances in the laser cutting of large-sized sheets with dimensions of 12000 x 3200 mm and more.
The TL 312 Speed 3D is equipped with an automatic pallet change system and with a dual portal where the tri-dimensional cutting head and the laser source are positioned. The first portal, which is very lightweight, carries the cutting head and can therefore move rapidly, performing all the required machinings with high acceleration. The second portal follows the first one like a rubber band, as it is connected to it by pressurised rubber bellows; it carries the laser source enabling all the work area to be reached and its machining tasks to be performed with consistency, precision and rapidity.
The effectiveness of Tube Tech Machinery's solution is proved by the translation speed of 100 m/min that can be reached on axis X, over three times greater than that of traditional laser systems for large-sized sheets, which carry head and source on a single carriage. The use of linear motors ensures excellent dynamic behaviour and high performance.
The system is fully automated and governed by a CNC facility for full independent operation, while the user-friendly CAD-CAM software complements this extraordinary equipment, which is truly unique in the global scene.
|
|
|
|
|
|
The application of Induction heating technology in the sector of pipe coating is now a consolidated practice. In fact, the coating’s polymerization process is guaranteed by optimal thermal conditions.
Induction’s experience is confirmed by the fact that we supply the largest companies of the sector in production plants all over the world.
Given the peculiarity of the application, Induction is specialized in supporting the Customer with extremely compact and flexible solutions for all production needs, and with innovative automatic temperature control for respecting process specifications.
The quality of the inductors assures for the supply, which is more subject to wear, a ten-year long duration, while fully respecting system performance.
Thanks to its experience in the piping sector, Induction is able to propose systems for loading, unloading and transporting pipes even of considerable thicknesses.
Due to the particular environmental conditions in which the coating systems are often installed, Induction offers quick and on-time service for any specific Customer request.
|
|
