Our electrical testing instruments cover the widest range of electrical tests required by international safety standards.
Depending on the specificities of your test and your test bench, ATEQ engineers determine which of our wide range of electrical testers best suits your application.
|
|
Electric Safety Tester PE, ISO, HV
Whether as a stand alone system, or part of a fully automated test system the Elabo Combitester sets itself apart with its wide range of applications and versatility. All test systems come ready and equipped to handle most jobs, though they can be adjusted with the appropriate plug-ins to meet further requirements. In addition to automated use, which is controlled only through an interface, there are also models with integrated touch screens available. PC-Software packages are available to assist in the assembly of complex systems, which cover all the requirements of a modern testing facility (Test Plan Creation, Visualization, Documentation, Statistics, etc.).
|
|
|
|
|
|
The TOS9200 Series has been developed to meet a wide diversity of customer needs. Including the refinement and enforcement of Kikusui%'s former Series, its specifications reflect the results of detailed study of our large database of user%u2019s requirements including special orders and modifying specifications.
The TOS9200 Series consists of four products the testers TOS9200 and TOS9201, and the high-voltage scanners TOS9221 and TOS9220.
The TOS9200 is equipped with AC withstanding voltage and insulation resistance testing functions, while the TOS9201 has a DC withstanding voltage testing function in addition to these two functions. The power block, a core component, employs a high-efficiency switching power supply and a switching amplifier based on PWM systems. These features realize high power and enhanced stability, as well as reducing the size and weight of the unit. When combined with the earth continuity tester TOS6200, the TOS9200 Series integrates three or four types of tests in a single process. Furthermore, when used together with the high-voltage scanner TOS9220/9221 (equipped with a contact check function), the tester is capable of automatically checking test points for up to 16 channels, thereby facilitating a safe, reliable automatic testing system.
|
|
|

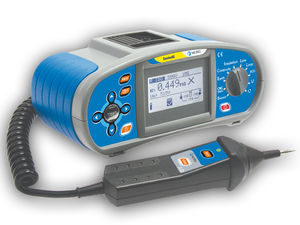

SIRIUS 87 is a model to performing all safety tests according to VDE 0413 on electrical installations. Inside model are integrated new fundamental features: the possibility to perform Loop Impedance (P-P, P-N, P-PE) at high resolution (0.1mOhms) with use of IMP57 optional accessory. Thanks to its PC interface and powerful software you will create accurate documents qualifying your profession more and more.
|
|
Hipot test to 6kVDC 10mA
Hipot test to 5kVAC 40mA
Ground Bond test to 42 Amps RMS
Insulation Resistance 50 to 1000V
Automated Remote Interface
|
|

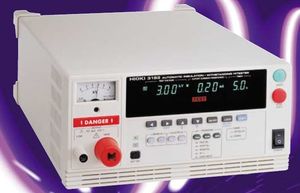

Perform insulation resistance and withstand voltage testing in a single series
This electrical safety test instrument series is designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. A multitude of automation and labor-saving features are provided to ensure effective testing for a wide variety of requirements and test conditions. Select the most appropriate model for your applications.
Insulation and voltage withstand testing
Safety standards compliance testing
Stores up to 10 sets of test conditions (10 each for insulation and voltage withstand)
Voltage comparator functions (voltage withstand testing)
Zero-V Switching (voltage withstand testing)
Electrical Discharge function (insulation testing)
Automated testing support
Interlock Protect function
Remote controllable
|
|
The PAT500H is a simple to use handheld Portable Appliance Tester designed to test the electrical safety of Class I and Class II 240V electrical appliances with current safety legislation.
The PAT500H minimises the risk of damage to sensitive electronic equipment, making the unit suitable for testing in the office and Information Technology environments
|
|
|
|
|
|
|
The LINECHEK Model 620L is a fully automated Line Leakage tester that can be configured to perform 8 of the most commonly required Line Leakage tests. The 620L has the most common measuring devices (MD's) already incorporated into the instrument and can perform patient lead tests with an optional scanning matrix. The 620L also features a continuous run capability which allows the DUT to be run without shutting down between line leakage tests. This remains true even in reverse polarity conditions. When configured with an optional Run test feature, the 620L can also monitor minimum and maximum readings for Voltage, Current, Watts, Power Factor, and Leakage Current. It can be configured for use in stand alone applications or as part of a test system when interconnected to any Associated Research Hipot or Ground Bond tester. The 620L may also be interconnected with the AC1000 Power source to provide clean power to the DUT and allow for full adjustment of DUT input voltage. For automated control of applied part test points, the 620L may be combined with the SC6540 modular scanning matrix. Lastly, Ethernet, RS-232 or GPIB communication interfaces allow for the automated control of the instrument.
|
|
Featuring
RS232, PCL & GPIB Control
AC Hipot to 5KV
DC hipot to 6KV
Insulation Resistance to 10GW
ARC Detection
Ground Continuity to .001W
|
|
|
The OMNIA 8100 series is a family of multi-function electrical safety compliance analyzers that consist of three models. OMNIA 4, model 8104, is a 4-in-1 instrument that provides AC/DC Hipot, Insulation Resistance and 40 Amp Ground Bond/Continuity tests. OMNIA 5, model 8105, is a 5-in-1 instrument that provides AC/DC Hipot, Insulation Resistance, 40 Amp Ground Bond/Continuity and Functional Run tests. OMNIA 6, model 8106, is a 6-in-1 instrument that provides AC/DC Hipot, Insulation Resistance, 40 Amp Ground Bond/Continuity, Functional Run and Line Leakage tests. All models feature an enhanced graphic LCD and simplified user-interface. OMNIA can be used as a bench top instrument or as a PC controlled system. It is best suited for applications that require multiple product safety tests with a single Device Under Test (DUT) connection. The ability to perform multiple electrical safety tests with a single connection will increase production and efficiency while saving time and money.
|
|
| ... products without technical information |
| |
|
|
|
|
FULLTEST4058 model was designed from HT ITALIA to performing essential tests in industrial environments on electrical machines devices and partially type-tested assemblies (PTTA) in compliance with EN60204-1 and EN60439-1 respectively.
The meter principally performing Continuity test on potential equalising conductors with >10AAC test current, Insulation Resistance with 500VDC test voltage and Withstanding tests with 1000AC test voltage (for electrical machine devices) and 2500V test voltage (for individual test on PTTA assemblies switchboards).
Withstanding test is performed also in BURN mode with no limits on trip-out current. Discharging Time measures of internal capacitance and on external plugs of device under test complete the list of possible test with this meter.As FULLTEST4050 more advanced model also FULLTEST4058 have a built-in internal memory to save all measurement results and a RS-232 PCs interface for directly transfer of saved tests by dedicated Windows software.
The model is fitted inside a practical and protected plastic case board with no flammability and a membrane keyboard for rapid selection of functions is included on the frontal panel together a wide custom display.
FULLTEST4058 is the ideal solution for any kind of verifier and/or industrial installer to performing easily and rapid test on industrial appliances.
|
|
Surge Protection Devices (SPD) are also known as Transient Voltage Surge Suppressors (TVSS). These devices can comprise a complex arrangement of varistors, transorb diodes and gas arresters. The function is to divert lightning surge energy away from electrical or electronic equipment. They are activated by the steep voltage impulse generated by a lightning strike and are designed to conduct tens of thousands of Amps in impulse energy. Typical impulse tests for SPD devices include energy absortion (8/20us or 10/350us), duty cycle (8/20us), Clamping voltage (8/20us) and Combination Wave Tests for devices connected in the AC power main.
EMC PARTNER offer a range of instruments from a few Amps up to 100,000 Amps.
All units offer a combination of impulses specific for particular devices whether they are disc varistors, SMD varistors, Gas Arresters or combinations of all.
|
|

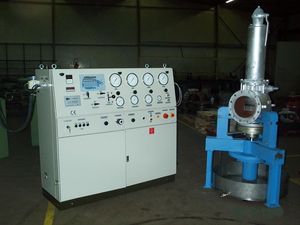

Hydratron has many years of experience in designing and manufacturing Relief Valve Test Benches ( PSV Test Benches ) which are suitable for testing 1/2" up to 24" valves having screwed or flanged connections at pressure of upto 14,500 PSI ( 1,000 Bar ) using water or gas as the test medium.
Valves under test can either be hydraulically clamped or fastened to the test bed and safety shields are fitted to protect the operator.
Panel mounted test gauges monitor the pressure in the valve undergoing test and full data logging facilities can be provided which allow charts to be produced and test data to be stored for future reference.
Portable units can be supplied with fork lift pockets or mounted within containers complete with lifting tackle, work bench and vice.
Alternatively static units are available for installation in maintenance workshops or production lines.
|
|
|
|
|
|
Online safety valve test system, PreVenTest
Pressure safety valves are installed on process equipment to release excess pressure due to upset process operations, external fires and other hazards. Or simply said; the safety valve serves to protect life and property. Failure of pressure safety valves to function properly when needed could result in the over pressure of vessels, exchangers, boilers, or other equipment they where installed to protect. It is essential to maintain your pressure safety valves and relief valves in good condition.
Periodically testing is one of the most important elements to proof that the safety valves will provide the so important protection. Obviously, the most desirable type of test is one that subjects the pressure relief valve to the full operating conditions that it is to endure in practice.
The Ventil PreVenTest system is a robust, but ingenious build system for testing all types and sizes of spring operated safety valves on-line, in process and under the normal operating conditions. The portable system enables you to proof the correct working and performance or identify safety valves in need of repair without plant shut-down.
Capabilities
- Unlimited range.
- Robust portable system.
- Universal and equipped for all brands.
Optional features
- ATEX Intrinsically safe version.
- 50 kN set for testing with no or a limited process pressure.
|
|
|
|
|
|

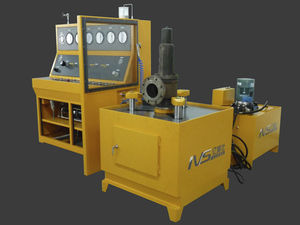

Safety valve test station VC25SRV
The Ventil VC25-SRV safety (relief) valve test rig allows testing with air and liquid and is designed to comply with API-567 for flow design and API-527 for seat tightness testing. The VC25SRV features a hydraulic operated 3-claw clamping system, design for quick clamping of safety valves with flanged and thread connections.
The test unit can apply a clamping force of 25 metric tons and suitable to test valves in range 1/2"-10" The VC25SRV safety valve test rig has a build in accumulator to comply with the safety valve test standards.
Standard features
- Auto claw clamping system.
- Stainless steel water reservoir.
- Gas and liquid testing.
- Bubble counter according to API 527.
- Stainless steel control panel.
- Safety screen.
- Interlock system preventing release of claws when pressurised.
- Skid mounted.
- Delivered ready for use.
Options
- Booster or compressor system for generating high pressure air.
- Computer registration system (CRS).
- Auto test system, auto control of ramp rate to meet ASME specification.
- Portable grinding/ lapping unit.
For more information and other types please visit our web site www.ventil.nl
|
|
|
Safety valve test benches for testing safety and shutoff valves from up to 24. The units are equipped with an automatic hydraulic clamping device. All hydraulic tests and high pressure gas tests are possible. The benche can be equipped with all kind of options such as a digital bubble test, computer storage and printouts.
|
|
| ... products without technical information |
| |
Instrument Control Software
The only stand-alone software that captures, stores and analyzes test results
Analyze, retrieve and store data instantly with Autoware, AR's electrical safety compliance testing software. Autoware S9870 is used in tandem with Associated Research's QUADCHEK II, HypotMAX, HypotULTRA III, HypotULTRA II, LINECHEK, and RUNCHEK series of instruments. Autoware control software provides the backup assurance manufacturers need to prove their equipment meets electrical safety requirements established by UL, CSA, IEC and other international agencies, and the European Norms such as the Low Voltage and Medical Directives.
|
|
1) Control all kinds of safety valves for both oil and gas wells.
2) Pneumatically and manually opening wells are both available.
3) Pressure is being kept stable by automatic pressure compensation system.
4) Emergency shut down against fire,overload and pressure drop.
5) New controlling technology on hydraulic system with driven air line control.
6) Remote control is available.
7) Pressure range:35Mpa-140Mpa.
8) Control objects:SSV(Surface Safety Valve),SCSSV(Surface-Controlled Subsuface Subsurface Safety Valve),and Wing valve.
9) Control types:Single well control ,Single well with Multi-valves.And Multi-Well with Multi-valves.
10)Control method:Pneumatically or manually.
|
|
|
|
