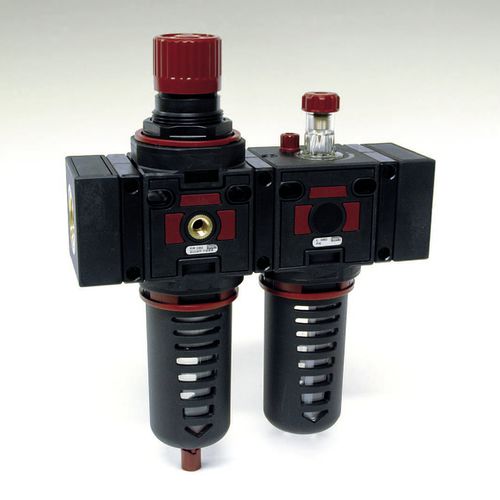

Air filter-regulator-lubricator 80 series

air filter-regulator-lubricator
air filter-regulator-lubricator
Add to favorites
Compare this product


Characteristics

Designed for
air
Operating pressure

Max.: 12.5 bar
(181.297 psi)

Min.: 0 bar
(0 psi)

Flow

2,200 l/min
(581.179 us gal/min)

Description

Unit consisting of Filter regulator + Lubricator * The set pressure is kept stable regardless of upstream variations * Downstream overpressures quickly eliminated. * Quick bowl connection by means of the safety ring mechanism. * Can be wall mounted using the relative holes or on bracket. * Pressure ranges: 0-4 Bar, 0-8 Bar (standard), 0-12,5 Bar 0-0,4 MPa, 0-0,8 MPa (standard), 0-1,25 MPa * Maximum operating pressure: 12,5 Bar (1,25 MPa). * Filtering degree: 5 micron and 20 micron (standard) * Integrated manual and semiautomatic condensate drainage (SS) or SA and SAD automatic versions. * Maximum ambient temperature (at 10Bar) 50°C ( 122°F) * Reference flow rate (P= 6,3 Bar Δp= 1 Bar): 2200 Nl/min * Weight: 1,28 Kg. * Max. torque inserts G3/4 IN e OUT: 80 Nm * Further technical features please see pag.71 (FR) e pag.68 (L). * Product complies with Directive 2002/95/CE ( RoHS). * Max tourque gouge port: 10 Nm.
