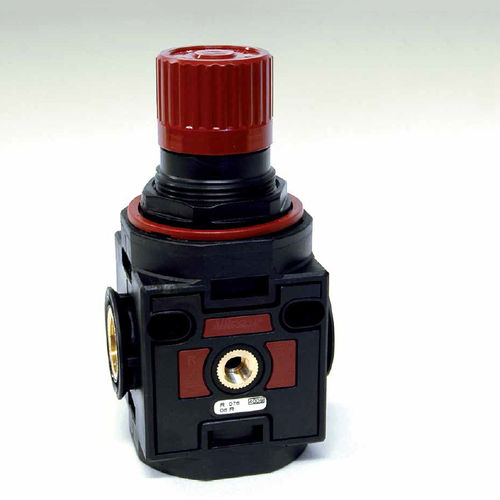

Air pressure regulator 075 series
diaphragmsingle-stageindustrial

air pressure regulator
air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for air
Technology
diaphragm
Number of stages
single-stage
Applications
industrial
Other characteristics
high-flow
Pressure

Max.: 12.5 bar
(181.3 psi)

Min.: 0 bar
(0 psi)

Flow

2,880 l/min
(760.82 us gal/min)

Description

*Rolling diaphragm. *The set pressure is kept stable regardless of upstream variations. *High flow rates with low load losses. *Downstream overpressures quickly eliminated. *Lockable safety knob. *Can be wall mounted by using the relative holes or on bracket. *Pressure ranges: 0÷4 Bar, 0÷8 Bar (standard), 0÷12,5 Bar 0÷0,4 MPa, 0÷0,8 MPa (standard), 0÷1,25 MPa *Maximum inlet pressure: 12,5 Bar (1,25 MPa). *Max. ambient temperature (at 10 bar) 50°C (122°F). *Max. torque inserts G1/2” IN-OUT: 80 N·m. *Reference flow rate (P=6,3 Bar - Δp=1 Bar): 2880 Nl/min. *Weight: 0,435 Kg. *Product complies with Directive 2002/95/CE (RoHS).
