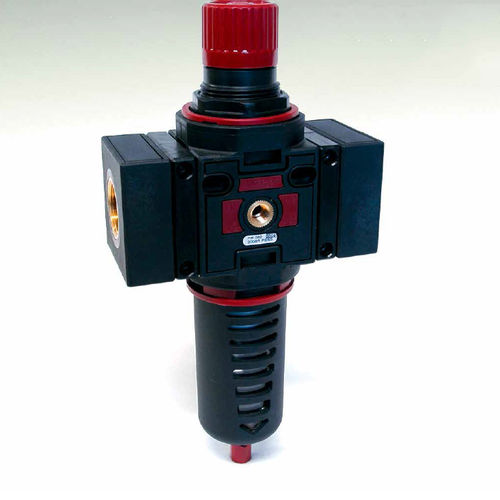

Air filter-regulator 80 series

air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Designed for
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 12.5 bar
(181.297 psi)

Filtration size

Min.: 5 µm

Max.: 20 µm


2,880 l/min
(760.816 us gal/min)


* Rolling diaphragm. * The set pressure is kept stable regardless of upstream variations. * Built-in overpressure relieving function. * Lockable safety knob. * High condensate separation level. * Quick bowl connection by means of safety ring mechanism. * Can be wall mounted using the relative holes or on bracket. * Pressure ranges: 0÷4 Bar, 0÷8 Bar (standard), 0÷12,5 Bar 0÷0,4 MPa, 0÷0,8 MPa (standard), 0÷1,25 MPa * Filtering degree: 5 micron and 20 micron (standard). * Integrated manual and semiautomatic condensate drainage (SS) or “SA” and “SAD” automatic versions. * Bowl in toughened polyamide with outer bowl guard. * Collected quantity of condensate: 100 cc. * Maximum operating pressure: 12,5 Bar (1,25 MPa). * Max. ambient temperature (at 10 bar) 50°C (122°F). * Max. torque inserts G3/4” IN-OUT: 80 N·m. * Reference flow rate (P=6,3 Bar - Δp=1 Bar): 2880 Nl/min. * Weight: 0,880 Kg. * Product complies with Directive 2002/95/CE (RoHS). * Max tourque gouge port: 10 Nm.
