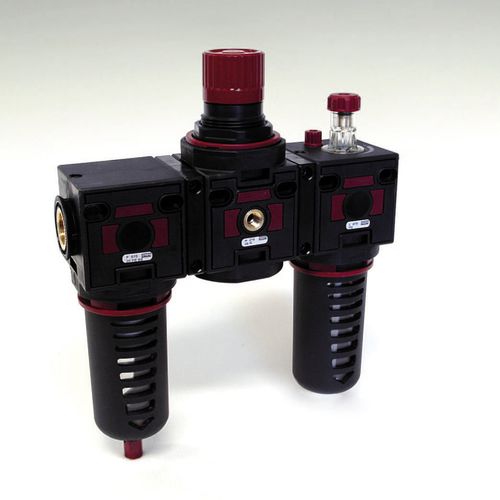

Compressed air filter-regulator-lubricator 75 series

compressed air filter-regulator-lubricator
compressed air filter-regulator-lubricator
Add to favorites
Compare this product


Characteristics

Designed for
compressed air
Filtration size

Min.: 5 µm

Max.: 20 µm

Operating pressure

Min.: 0 bar (0 psi)

Max.: 12.5 bar (181.297 psi)

Flow

2,200 l/min (581.179 us gal/min)

Description

Unit consisting of Filter + Regulator + Lubricator * The set pressure is kept stable regardless of upstream variations * Downstream overpressures quickly eliminated. * Quick bowl connection by means of the safety ring mechanism. * Can be wall mounted using the relative holes or on bracket. * Pressure ranges: 0-4 Bar, 0-8 Bar (standard), 0-12,5 Bar 0-0,4 MPa, 0-0,8 MPa (standard), 0-1,25 MPa * Maximum operating pressure: 12,5 Bar (1,25 MPa). * Filtering degree: 5 micron and 20 micron (standard) * Integrated manual and semiautomatic condensate drainage (SS) or SA and SAD automatic versions. * Maximum ambient temperature (at 10Bar) 50°C ( 122°F) * Reference flow rate (P= 6,3 Bar Δp= 1 Bar) : 2200 Nl/min * Weight: 1,23 Kg. * Max. torque inserts G ½ IN e OUT: 80 Nm * Further technical features please see page 50 (F), page 49 (R) and page 52 (L). * Product complies with Directive 2002/95/CE ( RoHS) * Max tourque gouge port: 10 Nm.
