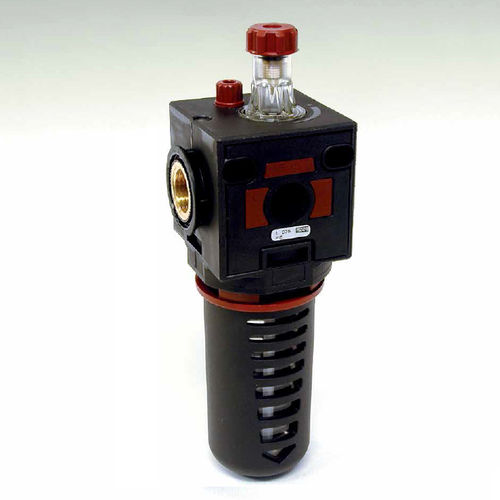

Electromechanical lubricator 75 series

electromechanical lubricator
electromechanical lubricator
Add to favorites
Compare this product


Characteristics

Technology
electromechanical
Capacity

132 cm³ (4 US fl oz)

Pressure

Min.: 0 bar (0 psi)

Max.: 7 bar (101.5 psi)

Flow rate

Min.: 0 m³/s (0 ft³/s)

Max.: 0.05 m³/s (797.8 ft³/s)

Description

* This version is equipped with a float level indicator, that allows to receive an electric signal able to control acoustic and luminous alarm, when into the bowl the oil reaches the minimum level. * Bowl capacity: 132 cc. * Maximum voltage: 100V AC/DC. * Contact: 0,75A 10W. * Protection degree: IP 65. * Other functional features, like standard model. * Max. torque inserts G1/2” IN-OUT: 80 N·m. * Reference flow rate (P=6,3 Bar - Δp=1 Bar): 3020 Nl/min. * Maximum working pressure: 7 Bar (0,7 MPa). * Weight: 0,385 Kg. * Product complies with Directive 2002/95/CE (RoHS).
