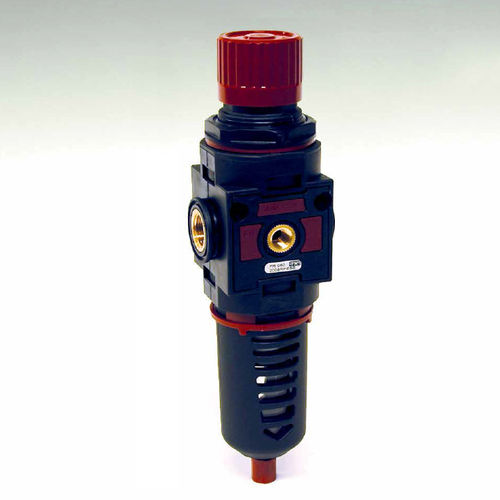

Air filter-regulator 50 series
separation

air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Characteristics

Designed for
air
Applications
separation
Filtration size

Min.: 5 µm

Max.: 20 µm

Operating pressure

Min.: 0 Pa (0 psi)

Max.: 12.5 Pa (0.002 psi)

Flow

2,100 l/min (554.761 us gal/min)

Description

* Rolling diaphragm. * The set pressure is kept stable regardless of upstream variations. * Large capacity with low load losses. * Downstream overpressures quickly eliminated. * Lockable safety knob. * High condensate separation level. * Quick bowl connection by means of safety ring mechanism. * Can be wall mounted using the relative holes or on bracket. * Pressure ranges: 0÷4 Bar, 0÷8 Bar (standard), 0÷12,5 Bar 0÷0,4 MPa, 0÷0,8 MPa (standard), 0÷1,25 MPa * Filtering degree: 5 micron and 20 micron (standard). * Manual and semiautomatic condensate drainage in the integrated (SS) or “SA and “SAD” automatic versions. * Bowl in toughened polyamide with outer bowl guard. * Collected quantity of condensate: 42 cc. * Maximum operating pressure: 12,5 Bar (1,25 MPa). * Max. ambient temperature (at 10 bar) 50°C (122°F). * Max. torque inserts G3/8” IN-OUT: 60 N·m. * Max. torque inserts G1/2” IN-OUT: 80 N·m. * Reference flow rate (P=6,3 Bar - Δp=1 Bar): 2100 Nl/min. * Weight: 0,410 Kg. * Product complies with Directive 2002/95/CE (RoHS). * Max tourque gouge port: 10 Nm.
