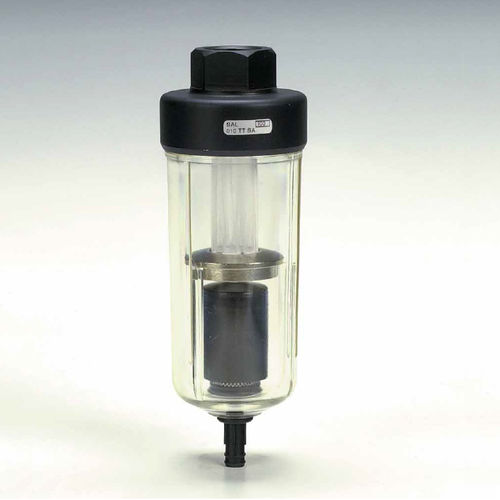

Condensate drain
automaticmechanical

condensate drain
condensate drain
Add to favorites
Compare this product


Characteristics

Medium
condensate
Operational mode
automatic
Type
mechanical
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 13 bar
(188.55 psi)

Operating temperature

Min.: 5 °C
(41 °F)

Max.: 50 °C
(122 °F)

Description

In the absence of pressure the outlet remains opened, thus ensuring that all settled fluid particles are eliminated. Equipped with hose nipple to convey the collected condensate away. To allow servicing operations, pressure can be relieved by slackening the knurled part at the end of the appliance. Maximum operating pressure 12,5 Bar (1,25 MPa). Temperature range 5÷50°C (41÷122°F). 1/2” BSP inlet connection. Weight 0,225 Kg. Product complies with Directive 2002/95/CE (RoHS).
