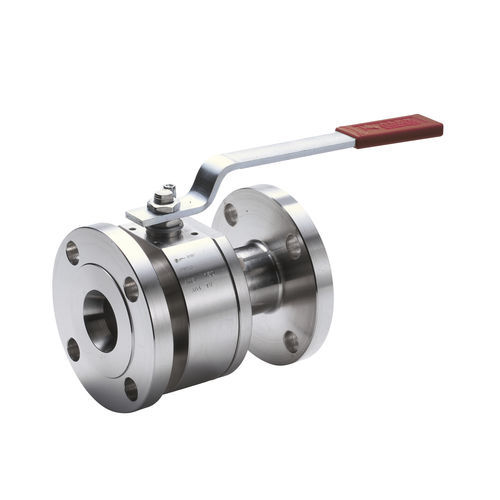

Floating ball valve AP606leverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, with handwheel, pneumatic
- Function
- flow control
- Media
- for water, for oil, for chemical products, for fuel
- Body
- with flange, 2-piece, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, process, for the petroleum industry
- Number of channels
- 2-channel
- Fluid specification
- for aggressive media, for hazardous fluids
- Other characteristics
- ANSI, bidirectional, high-temperature
- DN
Min.: 0.5 in
Max.: 3 in
- Pressure
Min.: 63 bar
(913.7 psi)Max.: 100 bar
(1,450.4 psi)- Temperature
Min.: -46 °C
(-51 °F)Max.: 400 °C
(752 °F)
Description
The AP20P is a valve that belongs to the AP series. It is equipped with metallic seats that permit the engineering of metal seated ball valves. It features ease of maintenance and it does not require extra lapping of the seats to the ball.
Equal attention is provided to the verification of the degree of external leakage through RWTUV certification of compliance with the limits imposed by Regulation TALUFT.
It offers reliability and capability as a solution of high level of temperature fluid handling. These are usual of all PENTA metal seated ball valves.
Catalogs
AP606
2 Pages
