Floating ball valve AP609
leverwith handwheelpneumatic

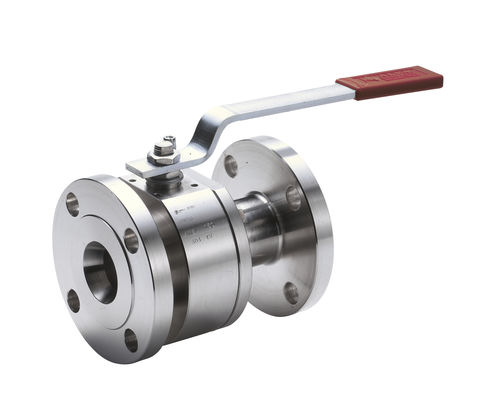

Floating ball valve - AP609 - Penta Srl - lever / with handwheel / pneumatic
Floating ball valve - AP609 - Penta Srl - lever / with handwheel / pneumatic
Floating ball valve - AP609 - Penta Srl - lever / with handwheel / pneumatic - image - 2
Add to favorites
Compare this product

Characteristics

Type
floating ball
Operation
lever, with handwheel, pneumatic
Function
flow control
Media
for oil, for chemical products, for fuel
Body
with flange, 2-piece
Applications
for industrial applications, for the chemical industry, industrial, process, for the gas industry, for the petroleum industry
Material
stainless steel, carbon steel
Number of channels
2-channel
Fluid specification
for aggressive media, for hazardous fluids
Other characteristics
ANSI, bidirectional, high-temperature
DN

Max.: 1.5 in

Min.: 0.5 in

Pressure

160 bar
(2,320.6 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -46 °C
(-51 °F)

Description

The AP609 is a metallic ball valve. It integrates the reliability and the capability in finding the right answer to the high temperature liquid handling problems on all Penta metal seated ball valves. The series consist of a metallic seats that permits the manufacturing of various metal seated ball valves without any form of leakage. Without the need to use additional lapping of the seats to the ball, the series offers an easy maintenance on the metallic ball valve. The series comes with different types of products and accessories available.

Catalogs

AP609
AP609
2 Pages
