3-piece valve 3PZ
floating ballleverpneumatic

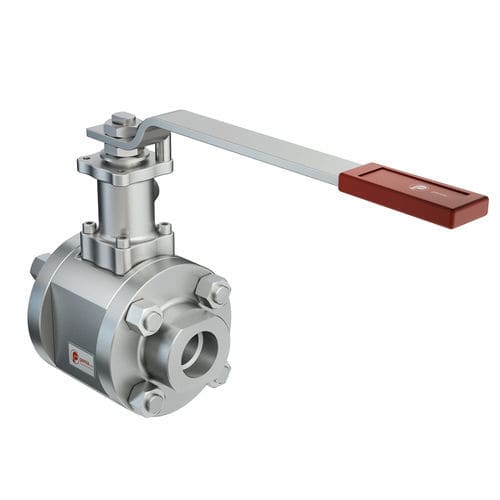

3-piece valve - 3PZ - Penta Srl - floating ball / lever / pneumatic
3-piece valve - 3PZ - Penta Srl - floating ball / lever / pneumatic
Add to favorites
Compare this product

Characteristics

Type
floating ball
Operation
lever, pneumatic
Function
shut-off
Media
for hot water, for industrial water, for oil, for chemical products, for fuel, for petroleum
Body
3-piece
Applications
for boiler, for industrial applications, for the chemical industry, process, for liquids, for the gas industry, for the petroleum industry, vacuum, for hygienic applications, for burners, for explosive atmospheres, refinery, for hazardous environments
Material
stainless steel, carbon steel
Number of channels
2-channel
Other characteristics
ISO, ANSI, bidirectional, quarter-turn, with threaded connection, locking, high-temperature, high-performance, anti-static, fire-safe, with actuator, socket weld, with operating handle, ATEX, with butt weld ends
DN

Max.: 50 mm
(1.969 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 132 bar
(1,914.5 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -46 °C
(-51 °F)

Description

3 piece metal seated ball valve, for high temperature and clean services, in stainless stell or carbon stell, with lever or actuator, SW, BW, NPT, class 800Lbs

Catalogs

3PZ
3PZ
5 Pages
