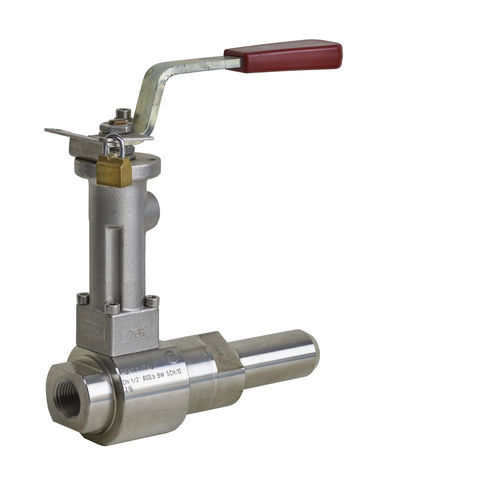

Floating ball valve AP20Pleverpneumaticflow control
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, pneumatic
- Function
- flow control, blanketing
- Media
- for water, for oil, for chemical products, for fuel
- Body
- threaded, weld, 2-piece, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for liquids, for the gas industry, for the petroleum industry
- Number of channels
- 2-channel
- Other characteristics
- ANSI, bidirectional, high-temperature
- DN
Min.: 0.5 in
Max.: 2 in
- Pressure
Min.: 10 bar
(145 psi)Max.: 138 bar
(2,001.5 psi)138 bar
(2,001.5 psi)- Temperature
Min.: -46 °C
(-51 °F)Max.: 400 °C
(752 °F)
Description
The AP20P valve belongs to the AP series. It is equipped with metallic seats that permit that engineering of metal seated ball valves. It features ease of maintenance without requiring extra lapping of the seats to the ball. This particular feature is standard in the properties of PENTAFITE elastic. This is also found in the products' certification of tightness toward the exterior by RWTUV.
It offers reliability and capability as a solution of high level of temperature fluid handling. These are standard with all PENTA metal seated ball valves.
Catalogs
AP20P
2 Pages
