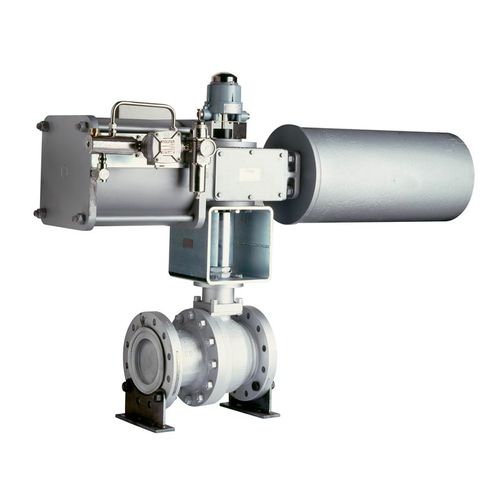

Floating ball valve AP60leverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, with handwheel, pneumatic, electrically-actuated
- Function
- flow control
- Media
- for water, for oil, for chemical products, for fuel
- Body
- with flange, 2-piece, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for process applications, for liquids, for the gas industry, for the petroleum industry
- Number of channels
- 2-channel
- Fluid specification
- for aggressive media, for hazardous fluids
- Other characteristics
- bidirectional, high-temperature
- DN
Max.: 6 in
Min.: 0.5 in
- Pressure
Max.: 40 bar
(580.2 psi)Min.: 25 bar
(362.6 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -46 °C
(-51 °F)
Description
The complete range of valves form AP series are equipped with metallic seats in PENTAFITE that enables to manufacture metal seated ball valves with absolutely ZERO LEAKAGE and easy maintenance. The series offers high reliability and capability to solve high temperature fluid handling problem that is typical with all PENTA metal seated ball valves. High quality of mass produced standard ALFA VALVOLE models are maintained. The typical PENTAFITE elastic properties eliminates the need of additional lapping of the seats to the ball. The tightness class toward the outside is verified by RWTUV to the limits imposed from the German regulation TA-LUFT.
Catalogs
AP60
2 Pages
