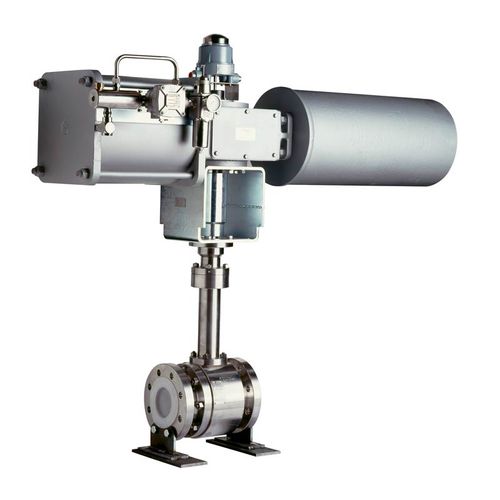

Floating ball valve SAT CRIO
pneumaticelectrically-actuatedwith handwheel

floating ball valve
floating ball valve
floating ball valve
Add to favorites
Compare this product


Characteristics

Type
floating ball
Operation
lever, with handwheel, pneumatic, electrically-actuated
Function
flow control
Media
LPG, for natural gas, for CO2, for liquified gas, for nitrogen, for LNG
Body
with flange, stainless steel, carbon steel, ABS
Applications
cryogenic
Number of channels
2-channel
Other characteristics
ANSI, high-performance, SIL 3, with cryogenic component, ATEX
DN

Min.: 0.5 in

Max.: 6 in

Pressure

Min.: 10 bar
(145 psi)

Max.: 250 bar
(3,625.9 psi)

Temperature

Min.: 104 °C
(219 °F)

Max.: 720 °C
(1,328 °F)

Description

The SAT CRIO has a layout that includes a unique technical solution to attain its reliability. The valves consist of metallic seats down to the temperature of 100°C maximum. They are made up of polymetric seats for lower level of temperature which enables the ball valves works without any leakage. The product is available with floating or Trunnion mounted ball. Also, it has a deducted bore or total bore. For this unit, it features automated body cavity pressure relief set up just like cryogenic stem elongation.

Catalogs

SAT CRIO
SAT CRIO
6 Pages
