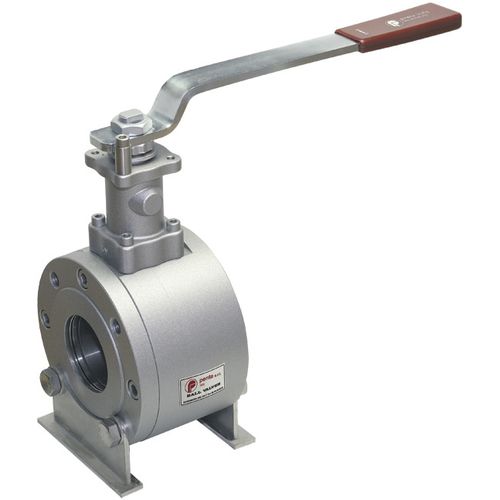

Floating ball valve WSSleverpneumaticshut-off
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, pneumatic
- Function
- shut-off
- Media
- for water, for oil, for chemical products, for fuel
- Body
- with flange, wafer, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, industrial, for dirty environments
- Number of channels
- 2-channel
- Other characteristics
- ISO, ANSI, bidirectional, high-temperature, ATEX, fire-safe
- DN
Max.: 6 in
Min.: 0.5 in
- Temperature
Max.: 400 °C
(752 °F)Min.: -50 °C
(-58 °F)
Description
This model can be considered an evolution of models AP10 and AP11 because designed to make easyier the maintenance on those wafer valves used on dirty services.
The use of a spit body wafer design eliminates the possibilità of galling on end ring nut like possible in standard AP10 or AP11.
The automatic body cavity pressure relief together with Bi-directionality make this model of tecnica high level.
Available with heating jacket also (in this case called WSJ)
All valves are provided with ISO 5211 top drilling.
Face to face are according to EN558 serie 100 (DN 3”, 4”, 6”), 101 (DN ½”, 3/4”) e 107.
