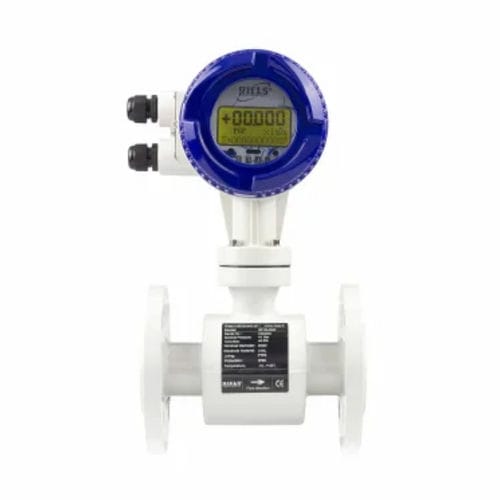

Electromagnetic flow meter RIF100 series
for wastewaterfor chemicalsfor conductive liquids

electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Fluid
for chemicals, for wastewater, for conductive liquids
Pipe diameter
DN65 - 2"1/2, DN50 - 2", DN250 - 10", DN25 - 1", DN15 - 1/2", DN100 - 4", DN80 - 3", DN40 - 1"1/2, DN20 - 3/4", DN32 - 1"1/4, DN200 - 8", DN300 - 12"
Material
stainless steel, PTFE
Communication
4-20 mA, RS485, analog output, Modbus, HART
Supply voltage
24 Vdc, 230VAC
Protection level
IP65, IP68
Applications
industrial, for the pharmaceutical industry, for the petrochemical industry
Other characteristics
compact, precision
Volumetric flow rate

Min.: 0.1 m³/h
(3.5 ft³/h)

Max.: 9.5 m³/h
(335.5 ft³/h)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 130 °C
(266 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 64 bar
(928.24 psi)

Precision

0.5 %

Description

The RIF100 is an electromagnetic flow meter that utilizes Faraday's principle to measure the velocity of the liquid and convert it into a signal proportional to the flow. Among its advantages are good precision, with a maximum deviation of ±0.5% from the measured value, complete indifference to the viscosity of the fluid, minimal pressure loss, and the ability to measure foamy liquids and those with suspended solids. Electronic Flow Converter CV010 It can be supplied in the compact version connected directly to the body or in the separate version connected to the body with a special cable of minimum length 10 meters. The converter displays the instantaneous flow and has a positive totalizer, a negative one and a net totalizer. It is possible to set a minimum or maximum flow threshold alarm. Auxiliary functions: Empty tube: this alarm intervenes in the absence of liquid or when its conductivity is less than 20 µS/cm. System alarm: intervenes in case of system anomalies such as problems with the coils or electrodes of the meter. The outputs available to the converter are: An analog output 4…20mA to retransmit the instantaneous flow; A frequency output used to retransmit the totalizer; You can choose Modbus RS485 communication or the HART protocol. The features and benefits of this instrument make it suitable for applications such as: Wastewater and municipal water treatment Metallurgical industries Paper mills Petrochemical plants Chemical product monitoring Available electrode materials include: AISI316L: Stainless steel suitable for use with mildly corrosive liquids, widely used in petrochemical, chemical, and carbamide industries.
