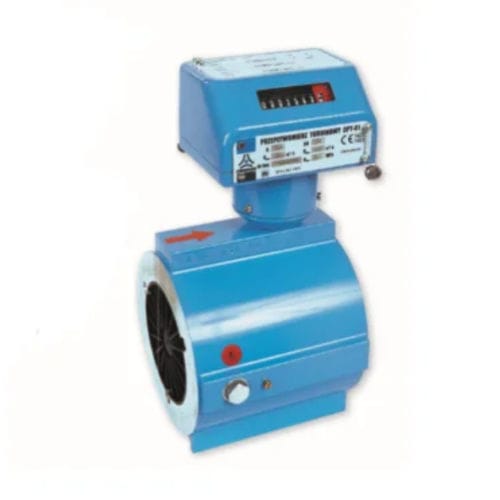

Turbine flow meter CPT-01

volumefor gasDN50 - 2"

The Turbine Quantometer exploits the principle of proportionality between the amount of gas flowing through the meter and the rotations of the turbine. A mechanical/magnetic transmission system activates the counting unit, located at the top of the quantometer that shows the volume of gas under operating conditions. Exceptional bearing accuracy, close tolerances of all measuring components, and the inclusion of a flow rectifier help minimize pressure losses. The measuring cartridge is separated from the outer body, ensuring immunity from potential mechanical stresses resulting from flange alignment inertia. In addition, it can be completely replaced. CPT-01 quantometers offer the possibility of connecting the instrument to the pipeline by gas thread or wafer and boast ATEX and PED approvals. Also in compliance with ISO 9001, they meet ISO 9951 DIN 33800 standards. With sizes ranging from 40 to 200 mm, these flow meters cover flow rates from 6 to 2500 m³/h. Standard rangeability is 1:20, but different ratios are available and they operate within pressure ranges of PN 16, PN 20 and ANSI 150. Designed for outdoor use with an IP66 rating, these flow meters can be installed horizontally or vertically. They come standard with two low-frequency pulse generators while high-frequency NAMUR-type pulse generators can also be chosen as an option. Product features Detection type - Continuous measurement Measurement type - With contact Flow direction - Unidirectional Details of the signal inputs and outputs All signal outputs available - Pulses, NAMUR Signal Output Type - Pulse/frequency Digital output type - REED Number of digital outputs - 1
