Woodworking angle clamp ABMC

heavy-dutyadjustablemiter

General

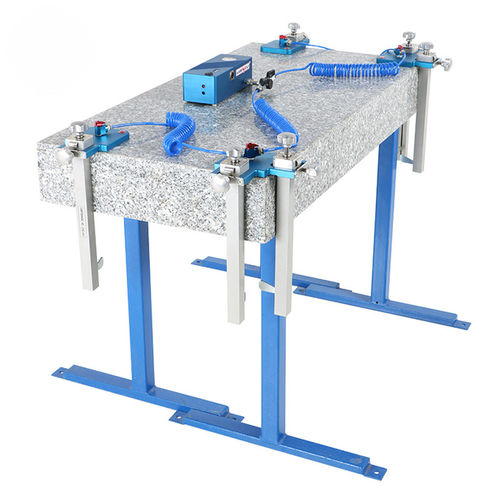

Face-up mitering with speed and precision. Suitable for bird-beak edges and 45° miters. The vacuum-assisted Miter Clamps consist of a vacuum unit (battery-operated vacuum pump, vacuum reserve tank, pressure switch and vacuum gauge) and four vacuum pads (two corner pads and two single pads) mounted on legs with threaded adjustment rods and rest arms to support aprons.

Features

• Heavy-duty vacuum pads provide a firm hold essential for an accurate glue-up.
• Sliding button lets the rest arm be positioned close to the apron width for quick setup.
• Threaded leveling adjustments (up/down and in/out) for fine alignment of the edge material.
• Easy-to-use knobs ensure consistent clamping pressure.
• Miter pieces are installed finished side up and out to allow seam visibility and precise glue application.

Specifications
Metric | Imperial
Grip range: 50 - 250 mm | 2–10 in
Net weight: 12 kg | 26.4 lb
Gross weight: 13 kg | 28.6 lb
Packaging dimensions: L 520 x W 310 x H 270 mm | 20.47 x 12.2 x 10.6 in

Note

• Sold as a set: two miter clamps, two corner clamps and a battery-operated vacuum pump.
• Trestles and other accessories sold separately.

Product / Technical specifications

• Product code: ABMC
• Grip range: 50 - 250 mm (2–10 in)
• Net weight: 12 kg (26.4 lb)
• Gross weight: 13 kg (28.6 lb)
• Packaging dimensions: 520 x 310 x 270 mm (20.47 x 12.2 x 10.6 in)
• Includes: two miter clamps, two corner clamps and a battery-operated vacuum pump (sold as set)
• Accessories such as trestles sold separately
• Patent status: pending
