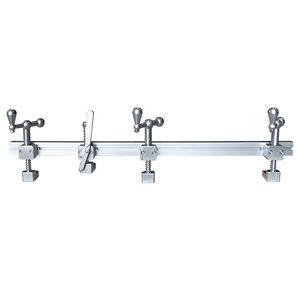

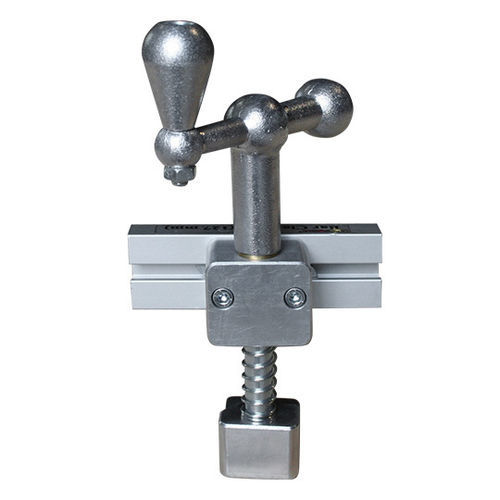

Edge clamp CTTBC5

Overview
The Lamination rail clamp CTTBC5 is designed for laminating edge strips in marble and granite fabrication shops. It reduces clamping time by up to 75%, improves joint alignment and increases workshop productivity, making it a standard tool for professional fabricators.

Key features

• Spring‑loaded holding jaw on longer bar models keeps the clamp in position during edge strip alignment
• Concealed clamp threads protect against epoxy contamination
• Large, ergonomically shaped tightening handles for easy operation
• Constructed from extruded anodized aluminium, stainless steel and zinc‑plated steel

Specifications

• Model: CTTBC5
• Grip range: 26–63 mm (1–2.5 in)
• Length: 127 mm (5 in)
• Net weight: 0.7 kg (1.5 lb)
• Gross weight: 0.8 kg (2 lb)
• Packaging dimensions: 150 x 160 x 95 mm (5.9 x 6.3 x 3.7 in)

Gallery

• lamination-rail-clamp-5-inch-cttbc5-1.jpg
• lamination-rail-clamp-5-inch-cttbc5-2.jpg

Video
Demonstration video available titled Lamination Rail Clamp | CTTBC5 | Aardwolf.

Technical notes

• Primary use: laminating and clamping edge strips on stone worktops (marble, granite)
• Benefits: reduces clamping time up to 75%+, improves joint quality and increases production throughput
