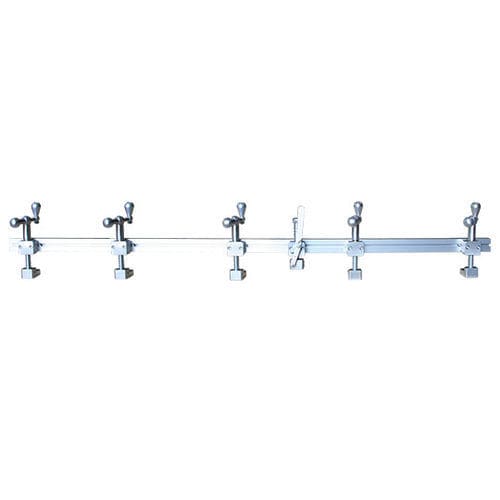

Edge clamp CTTBC6

aluminumadjustablesteel

General
The Lamination rail clamp is designed for laminating edge strips in marble and granite workshops. It reduces clamping time by approximately 75%, shortens production cycles and helps achieve consistent joint alignment. The CTTBC6 model is widely used by professional fabricators for edge-bonding applications.

Features

• Longer-length bar includes a spring-loaded holding jaw to keep the clamp in position during alignment of edge strips.
• Concealed clamp threads protect the threads from epoxy contamination.
• Large, easy-grasp tightening handles for secure torque application.
• Constructed from extruded anodized aluminium, stainless steel and zinc-plated steel.

Specifications
Metric — Imperial
Grip range: 26 - 63 mm — 1" - 2.5"
Length: 1830 mm — 72"
Net weight: 5.8 kg — 12.8 lb
Gross weight: 7 kg — 15.4 lb
Packaging dimension: L.1860xW.160xH.95 mm — L.73.2"xW.6.3"xH.3.7"

Technical details / Product code

• Product code: CTTBC6
• Brand: Aardwolf
• Materials: extruded anodized aluminium; stainless steel; zinc-plated steel
• Typical use: laminating edge strips on marble and granite countertops and panels
