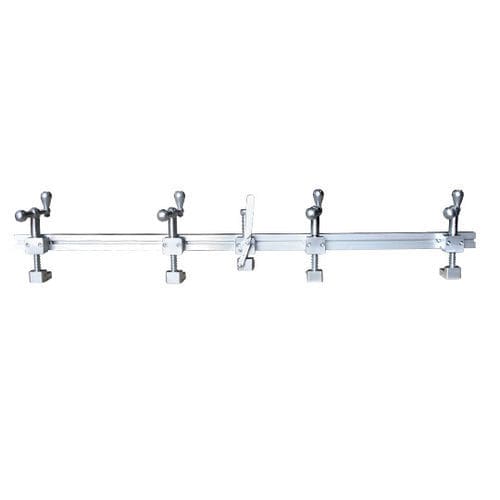

Edge clamp CTTBC4

for guide railsmetaladjustable

Overview
The Lamination Rail Clamp is designed for marble and granite workshops to clamp and laminate edge strips on stone countertops. Intended to reduce clamping time and improve joint alignment, the clamp supports repeatable production workflows in a fabrication environment.

Features

• Longer bar versions include a spring-loaded holding jaw to keep the clamp in position during edge-strip alignment
• Concealed clamp threads protect against epoxy contamination
• Large, easy-grasp tightening handles for faster operation
• Constructed from extruded anodized aluminum, stainless steel and zinc-plated steel

Specifications
Metric | Imperial
Grip range: 26 - 63 mm | 1" - 2.5"
Length: 1220 mm | 48"
Net weight: 5 kg | 11 lb
Gross weight: 5.8 kg | 12.8 lb
Packaging dimension: 1260 x 165 x 95 mm | 49.6" x 6.5" x 3.7"

Technical characteristics / specifications

• Product code: CTTBC4
• Model: Lamination Rail Clamp 4'
• Function: clamping/laminating edge strips on stone countertops (marble, granite)
• Grip range: 26 - 63 mm (1" - 2.5")
• Length: 1220 mm (48")
• Net weight: 5 kg (11 lb)
• Gross weight: 5.8 kg (12.8 lb)
• Packaging dimensions: 1260 x 165 x 95 mm (49.6" x 6.5" x 3.7")
• Materials: extruded anodized aluminum, stainless steel, zinc-plated steel
• Key features: spring-loaded holding jaw; concealed clamp threads; large tightening handles
• Brand: Aardwolf
• Resources: product video and image gallery available
• Notes: some technical sections on the product page are marked as "under construction"
