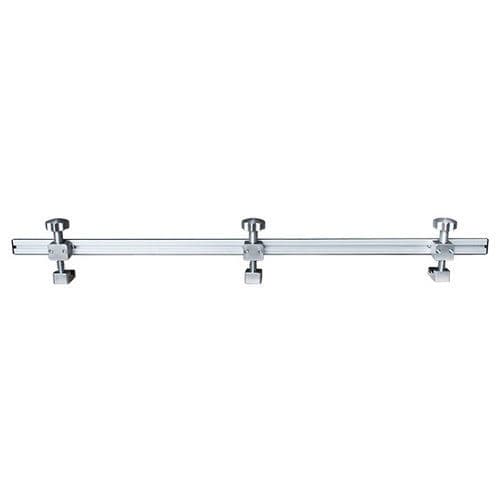

Edge clamp CTTABB4

steel

Overview
Anti-Breakage Bars are stiffening bars designed to prevent breakage of fragile stone pieces during lifting, handling and installation. Quick to attach and rubber-lined, they protect marble, granite and engineered stone by distributing loads and minimising point pressure.

Applications

• Safe handling and lifting of stone slabs and fragile stone elements on site and in workshops
• Protection during transport, movement and final installation
• Use with lifting clamps, suction systems or mechanical handling devices to stabilise thin or weakened pieces

Features

• Rubber-lined bar and rubber-lined individual jaws to cushion the workpiece and reduce hard point compression
• Full-grip hand knobs for secure manual adjustment with bare hands or gloves
• Bottom jaws connected by a rod sliding through the upper jaws; keyways and keys prevent separation and twisting of jaws and remove need for auxiliary alignment pins
• Constructed from extruded anodized aluminium, stainless steel and zinc-plated steel
• Supplied and sold in pairs

Specifications
Metric | Imperial
Grip range: 17 - 45 mm | 0.7" - 1.8"
Length: 1220 mm | 48"
Net weight: 8.4 kg | 19 lb
Gross weight: 9 kg | 20 lb
Packaging dimension: L1260 x W180 x H140 mm | L49.6" x W7.1" x H5.5"

Technical data

• Product code: CTTABB4
• Model: Anti-Breakage Bar 4' (1220 mm)
• Grip range: 17 - 45 mm (0.7" - 1.8")
• Length: 1220 mm (48")
• Net weight: 8.4 kg
• Gross weight: 9 kg
• Packaging dimensions: L1260 x W180 x H140 mm (L49.6" x W7.1" x H5.5")
• Materials: extruded anodized aluminium, stainless steel, zinc-plated steel
• Sold in pairs
