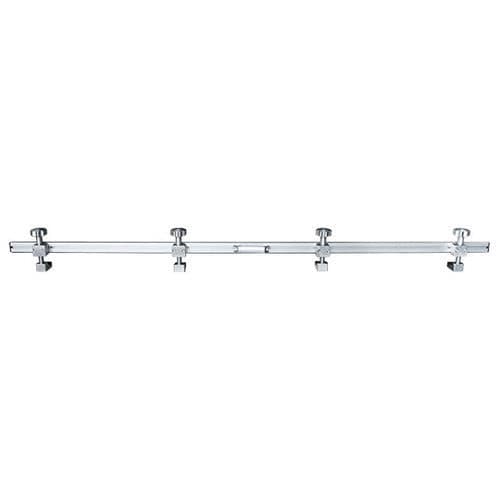

Metal bar clamp CTTABB6

steeladjustablealuminum

General
Anti-Breakage Bars are stiffening bars designed to prevent breakage of fragile stone workpieces during lifting, moving and installation. They attach quickly and easily to workpieces; rubber-lined components reduce localized compression and eliminate the risk of cracking or scratching expensive marble and granite panels.

Product

• Name: Anti-Breakage Bar (1830 mm)
• Product code: CTTABB6
• Brand: Aardwolf

Features

• Rubber-lined bar and rubber-lined individual jaws cushion and protect stone workpieces by distributing load and minimising pressure points.
• Full-grip hand knobs provide secure, easy adjustment with bare hands or gloves.
• Bottom jaws are connected by a rod that slides through the upper jaws; keyways and keys prevent complete separation and twisting, eliminating the need for auxiliary alignment rods and preventing jaws from dropping if hand knobs are fully loosened.
• Constructed from extruded anodized aluminum, stainless steel and zinc-plated steel for durability in industrial handling.
• Sold in pairs.

Specifications
Metric — Imperial
Grip range: 17 - 45 mm — 0.7" - 1.8"
Length: 1830 mm — 72"
Net weight: 12 kg — 26 lb
Gross weight: 13 kg — 29 lb
Packaging dimension: L.1870 x W.180 x H.140 mm — L.73.6" x W.7.1" x H.5.5"

Technical details

• Materials: extruded anodized aluminum, stainless steel, zinc-plated steel
• Sold as a pair
• Typical application grip range: 17–45 mm
