Aluminum angle clamp ASMC250

adjustablemiterlightweight

General description
The Aardwolf ASMC250 stone miter clamps are designed for fabricating granite, marble, engineered stone, ceramic and porcelain countertops. The finished-side-up configuration allows visible seam control and glue access during assembly. The set holds pieces at 90° with coarse and fine adjustments to achieve precise, tight seams while reducing the need for additional operators.

Key features

• Finished-side-up operation – visible seam and direct glue access during assembly.
• Auto-squaring mechanism – self-aligns corners for accurate 90° joints.
• Coarse and fine adjustments – fast positioning with precise seam tuning.
• Powerful suction cups – secure hold on flat stone surfaces.
• Aluminum construction – lightweight, corrosion-resistant frame for jobsite use.

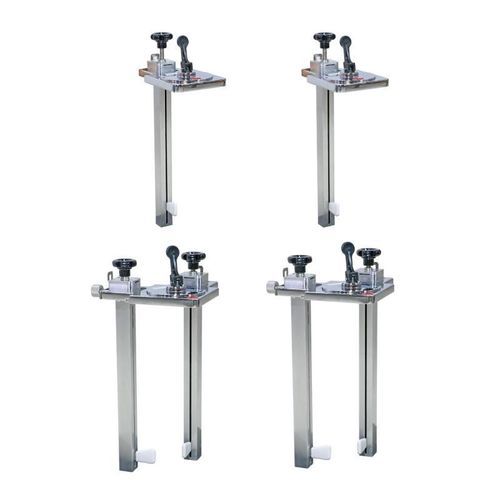

• Complete kit – includes two corner double clamps and two single clamps.

Specifications
Metric | Imperial
Grip range: 50 - 250 mm | 2" - 10"
Cup diameter: 118 mm | 4.6"
Net weight: 10.2 kg | 22.5 lbs
Gross weight: 11.4 kg | 25.1 lbs
Packaging dimensions: L 560 mm × W 290 mm × H 370 mm | 22.05" × 11.42" × 14.57"

Benefits

• Tighter seams with less rework – precise clamping reduces gaps and manual adjustments.
• Faster on-site assembly – single-operator handling and quick setup save labour.
• Reduced material waste – accurate alignment prevents shifting and cutting errors.
• Portable kit – compact packaging for transport between job sites.

Technical data

• Model: ASMC250
• Suitable materials: Granite, Marble, Engineered Stone, Ceramic, Porcelain
• Grip range: 50 - 250 mm (2" - 10")
• Cup diameter: 118 mm (4.6")
• Net weight: 10.2 kg (22.5 lbs)
• Gross weight: 11.4 kg (25.1 lbs)
• Packaging dimensions: 560 × 290 × 370 mm (22.05" × 11.42" × 14.57")
• Includes: 2 corner double clamps and 2 single clamps
