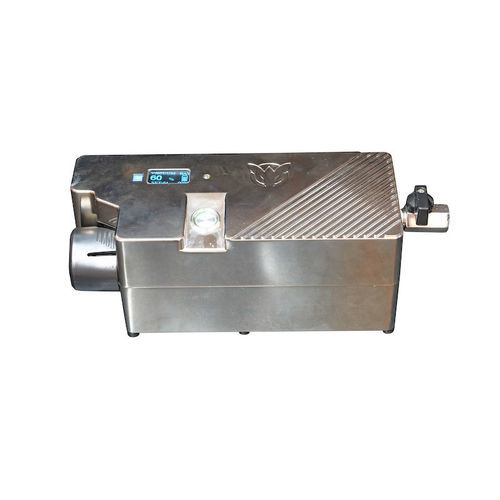

Diaphragm vacuum pump AVPP03

lubricated12VDCcompact

General
The Aardwolf Vacuum Pump with integrated reservoir is designed to support Aardwolf devices such as the Battery Joint Setter, Miter Clamp and Drill Stand. The unit is engineered for automatic operation and combines a compact vacuum pump, reservoir and monitoring features to simplify installation and on-site use.

Key features

• Vacuum pump: 12V micro diaphragm gas pump — max vacuum 80 kPa, max flow 16 L/min.
• Power supply: 12V 3.0 Ah Li-ion clip-in battery.
• Reservoir capacity: 770 cm³ (47.3 in) for sustained vacuum during repeated cycles.
• LCD indicator: Real-time system status display for easy monitoring.
• Flexible installation: Mounting and connection options for varied working conditions.
• Integrated non-return valve: Prevents backflow to maintain vacuum integrity.
• All-aluminium weather-resistant construction: Suitable for outdoor use, including direct rain.

Specifications

• Vacuum reservoir: 770 cm³ — 47.3 in
• Weight: 1.88 kg — 4.15 lb
• Max flow rate: 16 L/min
• Max vacuum: 80 kPa
• Battery: 12V — 3.0 Ah Li-ion (clip-in)

Technical details

• Pump type: 12V micro diaphragm gas pump
• LCD indicator for system monitoring
• Integrated non-return valve
• Construction: all-aluminium, weather-resistant (operation in direct rain)
• Compatible applications: Battery Joint Setter, Miter Clamp, Drill Stand
