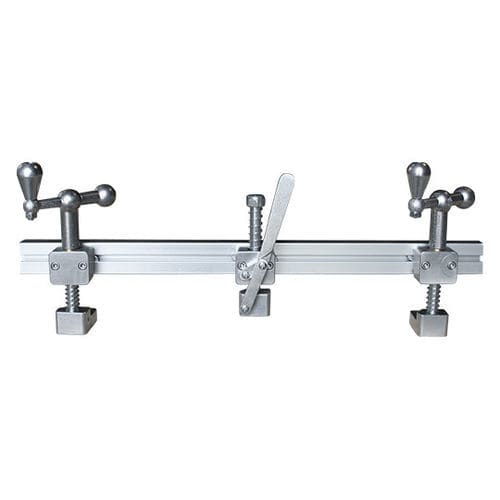

Edge clamp CTTBC2

steeladjustablemanual

Overview
The Lamination Rail Clamp is designed for laminating edge strips in marble and granite workshops. It reduces manual clamping time by up to 75%, helping fabricators increase throughput and achieve more consistent joints.

Applications

• Laminating edge strips on stone countertops, profiles and components
• Use in marble, granite and engineered stone fabrication shops

Features

• Longer-length bar versions include a spring-loaded holding jaw to keep the clamp in place during alignment
• Concealed clamp threads protect against epoxy contamination
• Large, easy-grip tightening handles for rapid operation
• Constructed from extruded anodized aluminium, stainless steel and zinc-plated steel

Specifications
Grip range: 26 - 63 mm — 1" - 2.5"
Length: 610 mm — 24"
Net weight: 2.8 kg — 6 lb
Gross weight: 3.2 kg — 7 lb
Packaging dimensions: L 630 x W 165 x H 95 mm — L 24.8" x W 6.5" x H 3.7"

Product details

• Product code: CTTBC2
• Materials: extruded anodized aluminium; stainless steel; zinc-plated steel
• Intended use: lamination of edge strips for stone fabrication
• Brand: Aardwolf
• Media: product video available (YouTube)
