Nut setting tool EOSS

General

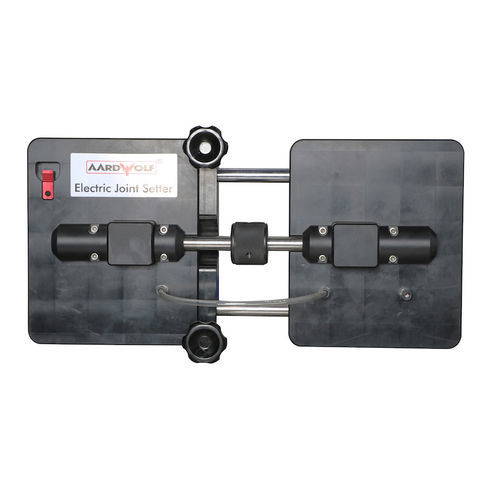

The Electric Joint Setter EOSS is designed to close and align gaps between two slabs, pulling them together for precise joint positioning. Compatible with non-porous stone and glass surfaces, the unit operates by moving a roller nut for quick opening and closing by hand. Two vacuum bases are guided on precision steel axles anchored by a central axle and two sub-axles. As the roller rotates, one vacuum base translates along the sub-axles to draw the slabs together. A balance bar with four leveling knobs allows fine surface leveling. The electric vacuum pump maintains equal suction in both pads during operation.

Features

• Compact and lightweight construction for onsite handling.
• Ergonomic operation: open/close seams using the roller nut with the palm of the hand.
• Four leveling knobs ensure joints remain flush.
• Fast, powerful tightening mechanism for controlled alignment.
• Electric-operated vacuum pump with integrated exhaust valve.
• Number of vacuum bases: 2 pcs.
• Vacuum base size: 230 x 190 mm (9" x 7.5").

Specifications

• Package included: 2 pcs Seam Setters.
• Net weight: 15.8 kg (34.8 lb).
• Gross weight: 18 kg (39.7 lb).
• Packaging dimensions: L 600 x W 200 x H 280 mm (L 23.6" x W 7.9" x H 11").

Electric information for the device

• Max. vacuum: -630 mm Hg.
• Max. flow: 23 l/min.
• Motor speed: 1750 RPM.
• Power: 1/8 HP.
• Noise level: 50 dB.
• Powered by: 220V / 50Hz.

Note
Sold as a set: two Seam Setters and one electric vacuum pump.

Technical specifications

• Model / reference: EOSS
• Application: closing and aligning joints between non-porous stone or glass slabs
• Number of vacuum pads: 2
• Vacuum pad size: 230 x 190 mm
• Net weight: 15.8 kg
• Gross weight: 18 kg
• Packaging dimensions: 600 x 200 x 280 mm
• Max. vacuum: -630 mm Hg
• Max. flow: 23 l/min
• Motor speed: 1750 RPM
• Power supply: 220V / 50Hz, 1/8 HP
• Noise level: 50 dB
