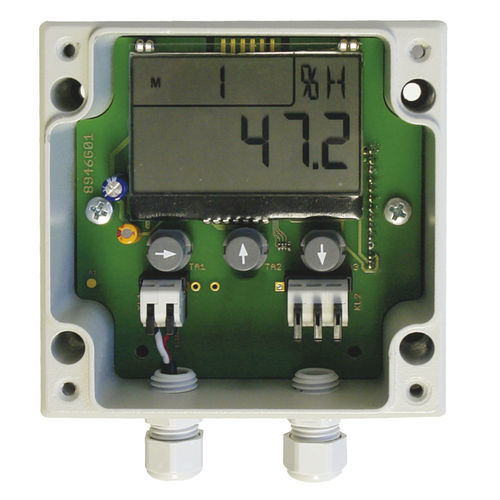

Relative humidity and temperature transmitter MH8D46C
wall-mountduct-mountplug-in

relative humidity and temperature transmitter
relative humidity and temperature transmitter
Add to favorites
Compare this product


Characteristics

Type
relative
Mounting
wall-mount, duct-mount, plug-in
Output
analog
Measuring range (%)

Min.: 0 %

Max.: 100 %

Measuring range (temperature)

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

• with double analog output V or mA • Designs and specifications see data sheet Technical data and functions • Digital sensor element • All key sensor characteristics, settings, and adjustment data are saved in the sensor element itself. • Plug-in sensor element • Spare elements are inexpensive; a replacement can be fitted on site quickly and easily by virtually anyone; it will be fully accurate straight away needing no special adjustment. • Digital transfer of measured values from the sensor element to the transmitter • Factory or DAkkS calibration is erformed on the sensor element alone. Fully accurate - irrespective of connecting cable and transmitter • Four climate variables can be measured: Double analog output for temperature and one humidity variable relative humidity / dewpoint / mixture ratio • Limit value relays available on request • The transmitters can be configured via the internal display and the keypad. • The analog output type (10 V or 20 mA) can be selected (via the keypad); the analog output range can be programmed. • Display of measured value, channel, units, humidity range, analog start, analog end, and analog type • The sensor tube can be connected either directly by plugging onto the transmitter itself or via a connecting cable. • Suitable for conduit mounting or wall mounting
