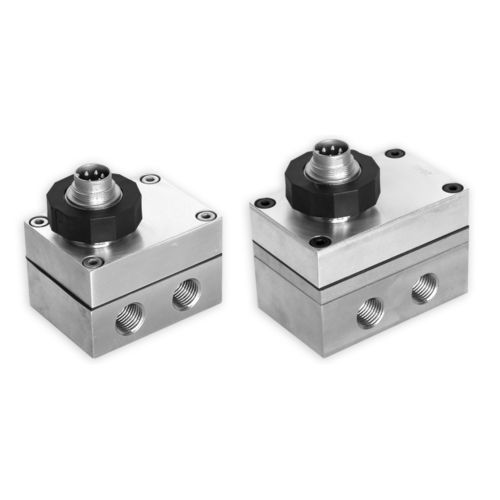

Differential pressure transmitter FDA 602 D series
voltage output15VDC6VDC

differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Output
voltage output
Supply voltage
15VDC, 6VDC
Mounting
threaded
Process connection
G 1/4
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, IP65
Other characteristics
precision, low pressure
Pressure range

Max.: 450,000 mbar
(6,526.7 psi)

Min.: 200 mbar
(2.9 psi)

Precision

0.05 %, 0.1 %

Process temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Differential pressure transmitter • This makes it less expensive but more robust with respect to asymmetrical overload • Designs and specifications see data sheet Technical data and functions • This measures the differential pressure in liquid and gaseous media indirectly using two absolute pressure sensors. • This makes it less expensive but more robust with respect to asymmetrical overload. • The differential pressure range should be at least 5% of the standard pressure range. • Each side of the sensor incorporates two pressure connections. The transmitters can thus be used easily and conveniently in pressure pipes. • It incorporates a high-speed, high-precision microprocessor. • All reproducible errors affecting the pressure sensors, i.e. involving non-linearity and temperature dependency, can be completely eliminated by means of mathematical error compensation.
