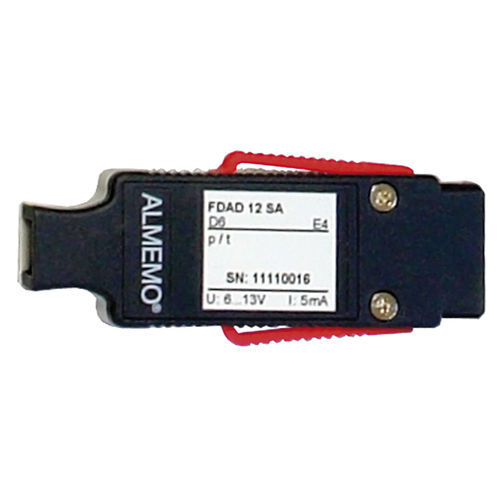

Atmospheric pressure sensor FDAD 12 SA
membranedigital4-20 mA

atmospheric pressure sensor
atmospheric pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
atmospheric
Technology
membrane
Output
4-20 mA, digital
Supply voltage
15VDC
Other characteristics
precision, compact
Pressure range

Max.: 1,100 mbar
(15.95 psi)

Min.: 300 mbar
(4.35 psi)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Digital atmospheric pressure sensor for barometric pressure • Digital atmospheric pressure sensor with temperature compensation • Designs and specifications see data sheet Technical data and functions • Digital atmospheric pressure sensor with temperature compensation • Very accurate over a wide temperature range • The value measured for atmospheric pressure can also be used to compensate other sensors on the ALMEMO® device (programming comment *P). • Compact design, without pressure connection sleeve • Can be connected directly to the measuring instrument. • One measuring channel is programmed (at our factory): Atmospheric pressure (mbar, AP, p)
