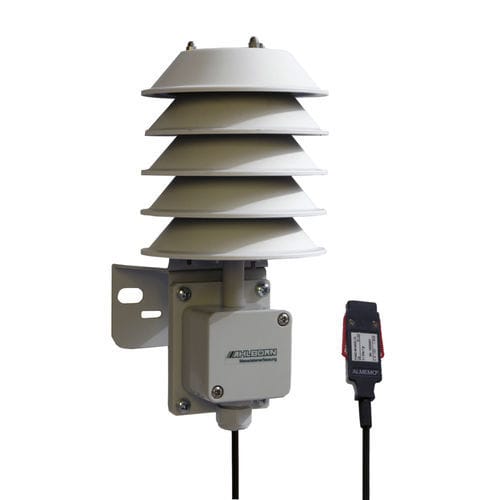

Weather sensor with temperature measurement FHAD 46-C4AG

weather sensor with temperature measurement
weather sensor with temperature measurement
Add to favorites
Compare this product


Characteristics

Options and accessories
with temperature measurement

Description

Meteorological sensors all-weather housing • Digital sensor for • temperature • atmospheric humidity • atmospheric pressure • Designs and specifications see data sheet Technical data and functions • All relevant ambient parameters are measured with one sensor. • Suitable for mounting on a wall or a mast • Sensor cable up to 100 meters long, clamped in terminal box • All sensors in 1 multi-sensor module: capacitive digital sensor for humidity and temperature, digital atmospheric pressure sensor. Additional EEPROM data storage medium in the sensor module • The sensor module is thoroughly adjusted. All sensor characteristic and adjustment data are stored in the data storage medium of the sensor module itself. In the process of readjusting the individual sensors, the adjustment values are directly saved in the data storage medium of the sensor module. • Replacement sensor modules are inexpensive: The sensor module is pluggable and can be simply exchanged on-site. Full accuracy without any adjustment, especially with calibrated sensors. The ALMEMO® connecting cable and the ALMEMO® measuring instrument have no influence on the calibration. • The atmospheric pressure is measured directly at the measuring point in the sensor tip. Hence, the atmospheric pressure dependent humidity variables are automatically pressure compensated. • Humidity calculation on the basis of formulae as per Dr. Sonntag and the enhancement factor as per W. Bögel (correction factor fw(t,p) for real mixed gas systems). This substantially widens the measuring range and improves the accuracy of humidity variable calculations. • Humidity variables: Absolute humidity in g/m³.
